oofem::Inclusion Class Reference

EnrichmentItem describing an inclusion. More...

#include <inclusion.h>

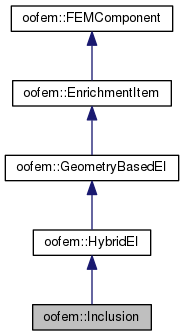

+ Inheritance diagram for oofem::Inclusion:

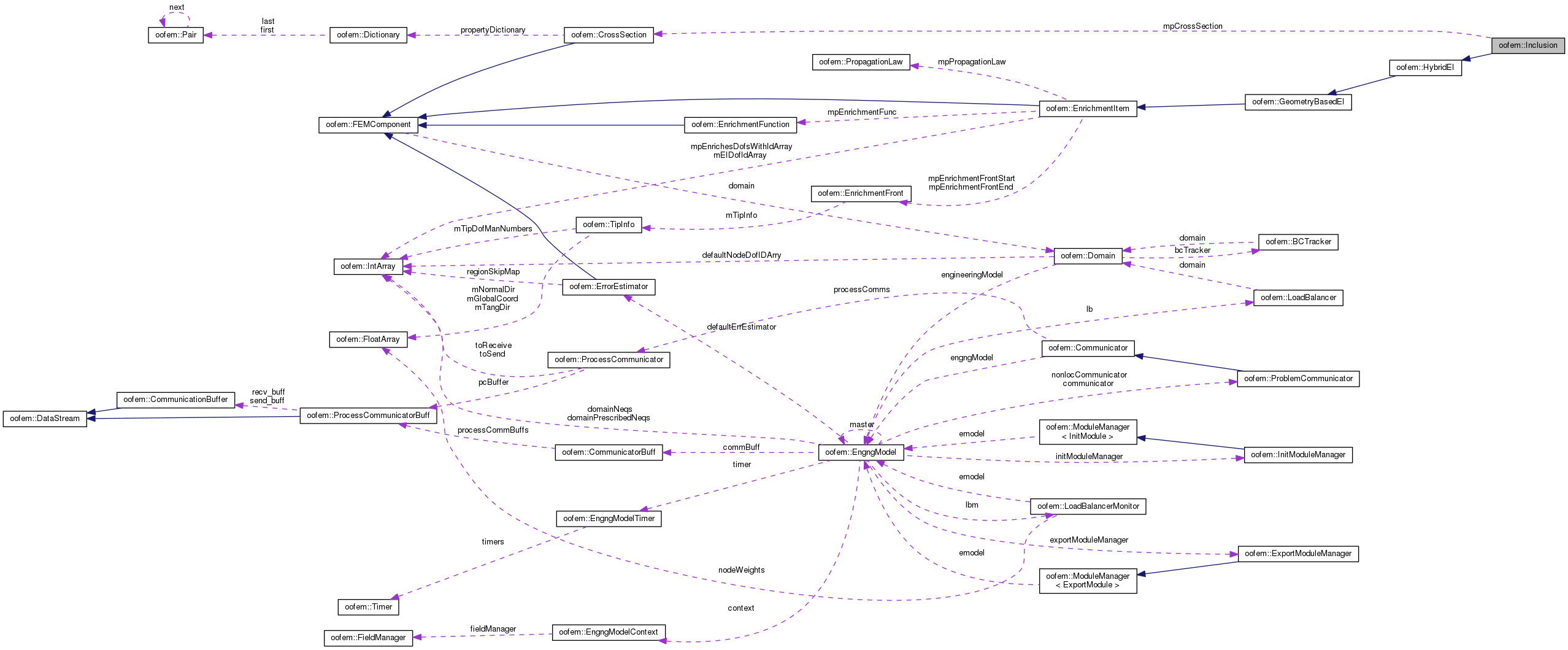

+ Collaboration diagram for oofem::Inclusion:

Public Member Functions

 Inclusion (int n, XfemManager *xm, Domain *aDomain)

virtual ~Inclusion ()

virtual bool canModifyMaterial () const

virtual bool isMaterialModified (GaussPoint &iGP, Element &iEl, CrossSection *&opCS) const

virtual const char * giveClassName () const

virtual const char * giveInputRecordName () const

virtual IRResultType initializeFrom (InputRecord *ir)
 Initializes receiver according to object description stored in input record. More...

CrossSectiongiveCrossSection ()

- Public Member Functions inherited from oofem::HybridEI
 HybridEI (int n, XfemManager *xm, Domain *aDomain)

virtual ~HybridEI ()

virtual void evalLevelSetNormal (double &oLevelSet, const FloatArray &iGlobalCoord, const FloatArray &iN, const IntArray &iNodeInd) const
 Evaluate the normal direction level set in the point iGlobalCoord. More...

virtual void evalLevelSetTangential (double &oLevelSet, const FloatArray &iGlobalCoord, const FloatArray &iN, const IntArray &iNodeInd) const
 Evaluate the tangential direction level set in the point iGlobalCoord. More...

virtual void evalGradLevelSetNormal (FloatArray &oGradLevelSet, const FloatArray &iGlobalCoord, const FloatMatrix &idNdX, const IntArray &iNodeInd) const
 Evaluate the gradient of the normal direction level set in the point iGlobalCoord. More...

void interpLevelSet (double &oLevelSet, const FloatArray &iN, const IntArray &iNodeInd) const

void interpLevelSetTangential (double &oLevelSet, const FloatArray &iN, const IntArray &iNodeInd) const

void interpGradLevelSet (FloatArray &oGradLevelSet, const FloatMatrix &idNdX, const IntArray &iNodeInd) const

- Public Member Functions inherited from oofem::GeometryBasedEI
 GeometryBasedEI (int n, XfemManager *xm, Domain *aDomain)

virtual ~GeometryBasedEI ()

virtual int instanciateYourself (DataReader &dr)

virtual void updateDofIdPool ()

virtual void appendInputRecords (DynamicDataReader &oDR)

virtual void updateGeometry ()

virtual void updateNodeEnrMarker (XfemManager &ixFemMan)

void updateLevelSets (XfemManager &ixFemMan)

virtual void evaluateEnrFuncInNode (std::vector< double > &oEnrFunc, const Node &iNode) const

virtual void evaluateEnrFuncAt (std::vector< double > &oEnrFunc, const FloatArray &iGlobalCoord, const FloatArray &iLocalCoord, int iNodeInd, const Element &iEl) const

virtual void evaluateEnrFuncAt (std::vector< double > &oEnrFunc, const FloatArray &iGlobalCoord, const FloatArray &iLocalCoord, int iNodeInd, const Element &iEl, const FloatArray &iN, const IntArray &iElNodes) const

virtual void evaluateEnrFuncDerivAt (std::vector< FloatArray > &oEnrFuncDeriv, const FloatArray &iGlobalCoord, const FloatArray &iLocalCoord, int iNodeInd, const Element &iEl) const

virtual void evaluateEnrFuncDerivAt (std::vector< FloatArray > &oEnrFuncDeriv, const FloatArray &iGlobalCoord, const FloatArray &iLocalCoord, int iNodeInd, const Element &iEl, const FloatArray &iN, const FloatMatrix &idNdX, const IntArray &iElNodes) const

void evaluateEnrFuncJumps (std::vector< double > &oEnrFuncJumps, int iNodeInd, GaussPoint &iGP, bool iGPLivesOnCurrentCrack) const

virtual void computeIntersectionPoints (std::vector< FloatArray > &oIntersectionPoints, std::vector< int > &oIntersectedEdgeInd, Element *element, std::vector< double > &oMinDistArcPos) const

virtual void computeIntersectionPoints (std::vector< FloatArray > &oIntersectionPoints, std::vector< int > &oIntersectedEdgeInd, Element *element, const Triangle &iTri, std::vector< double > &oMinDistArcPos) const

virtual void writeVtkDebug () const

void giveSubPolygon (std::vector< FloatArray > &oPoints, const double &iXiStart, const double &iXiEnd) const

virtual void propagateFronts (bool &oFrontsHavePropagated)

virtual bool giveElementTipCoord (FloatArray &oCoord, double &oArcPos, Element &iEl, const FloatArray &iElCenter) const

virtual void giveBoundingSphere (FloatArray &oCenter, double &oRadius)

BasicGeometrygiveGeometry ()

void setGeometry (std::unique_ptr< BasicGeometry > &&ipBasicGeometry)

- Public Member Functions inherited from oofem::EnrichmentItem
 EnrichmentItem (int n, XfemManager *xm, Domain *aDomain)
 Constructor / destructor. More...

virtual ~EnrichmentItem ()

virtual void giveInputRecord (DynamicInputRecord &input)
 Note the special treatment here, the "normal" syntax would be giveInputRecord(DynamicInputRecord &input). More...

const IntArraygiveEnrichesDofsWithIdArray () const

int giveNumberOfEnrDofs () const

bool isElementEnriched (const Element *element) const

bool isDofManEnriched (const DofManager &iDMan) const

int giveNumDofManEnrichments (const DofManager &iDMan) const

virtual void updateGeometry (FailureCriteriaStatus *fc, TimeStep *tStep)

virtual void updateGeometry (TimeStep *tStep)

virtual bool hasPropagatingFronts () const

virtual bool hasInitiationCriteria ()

int giveStartOfDofIdPool () const

int giveEndOfDofIdPool () const

virtual int giveDofPoolSize () const

virtual void computeEnrichedDofManDofIdArray (IntArray &oDofIdArray, DofManager &iDMan)
 Compute Id's of enriched dofs for a given DofManager. More...

virtual void giveEIDofIdArray (IntArray &answer) const

virtual void givePotentialEIDofIdArray (IntArray &answer) const

bool evalLevelSetNormalInNode (double &oLevelSet, int iNodeInd, const FloatArray &iGlobalCoord) const

bool evalLevelSetTangInNode (double &oLevelSet, int iNodeInd, const FloatArray &iGlobalCoord) const

bool evalNodeEnrMarkerInNode (double &oNodeEnrMarker, int iNodeInd) const

virtual void createEnrichedDofs ()

PropagationLawgivePropagationLaw ()

void setPropagationLaw (PropagationLaw *ipPropagationLaw)

bool hasPropagationLaw ()

virtual void callGnuplotExportModule (GnuplotExportModule &iExpMod, TimeStep *tStep)

const std::unordered_map< int, NodeEnrichmentType > & giveEnrNodeMap () const

EnrichmentFrontgiveEnrichmentFrontStart ()

void setEnrichmentFrontStart (EnrichmentFront *ipEnrichmentFrontStart, bool iDeleteOld=true)

EnrichmentFrontgiveEnrichmentFrontEnd ()

void setEnrichmentFrontEnd (EnrichmentFront *ipEnrichmentFrontEnd, bool iDeleteOld=true)

bool tipIsTouchingEI (const TipInfo &iTipInfo)

void setEnrichmentFunction (EnrichmentFunction *ipEnrichmentFunc)

- Public Member Functions inherited from oofem::FEMComponent
 FEMComponent (int n, Domain *d)
 Regular constructor, creates component with given number and belonging to given domain. More...

virtual ~FEMComponent ()
 Virtual destructor. More...

DomaingiveDomain () const

virtual void setDomain (Domain *d)
 Sets associated Domain. More...

int giveNumber () const

void setNumber (int num)
 Sets number of receiver. More...

virtual void updateLocalNumbering (EntityRenumberingFunctor &f)
 Local renumbering support. More...

virtual contextIOResultType saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
 Stores receiver state to output stream. More...

virtual contextIOResultType restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
 Restores the receiver state previously written in stream. More...

virtual int checkConsistency ()
 Allows programmer to test some internal data, before computation begins. More...

virtual void printOutputAt (FILE *file, TimeStep *tStep)
 Prints output of receiver to stream, for given time step. More...

virtual void printYourself ()
 Prints receiver state on stdout. Useful for debugging. More...

virtual InterfacegiveInterface (InterfaceType t)
 Interface requesting service. More...

std::string errorInfo (const char *func) const
 Returns string for prepending output (used by error reporting macros). More...


Protected Attributes

CrossSectionmpCrossSection

- Protected Attributes inherited from oofem::GeometryBasedEI
std::unique_ptr< BasicGeometrympBasicGeometry

- Protected Attributes inherited from oofem::EnrichmentItem
EnrichmentFunctionmpEnrichmentFunc

EnrichmentFrontmpEnrichmentFrontStart

EnrichmentFrontmpEnrichmentFrontEnd

int mEnrFrontIndex
 mEnrFrontIndex: nonzero if an enrichment front is present, zero otherwise. More...

PropagationLawmpPropagationLaw

int mPropLawIndex
 mPropLawIndex: nonzero if a propagation law is present, zero otherwise. More...

bool mInheritBoundaryConditions
 If newly created enriched dofs should inherit boundary conditions from the node they are introduced in. More...

bool mInheritOrderedBoundaryConditions

int startOfDofIdPool

int endOfDofIdPool

IntArray mpEnrichesDofsWithIdArray
 Geometry associated with EnrichmentItem. More...

std::unordered_map< int, double > mLevelSetNormalDirMap

std::unordered_map< int, double > mLevelSetTangDirMap

std::unordered_map< int, NodeEnrichmentTypemNodeEnrMarkerMap

IntArray mEIDofIdArray

bool mLevelSetsNeedUpdate

const double mLevelSetTol2

- Protected Attributes inherited from oofem::FEMComponent
int number
 Component number. More...

Domaindomain
 Link to domain object, useful for communicating with other FEM components. More...


Additional Inherited Members

- Static Public Member Functions inherited from oofem::EnrichmentItem
static double calcXiZeroLevel (const double &iQ1, const double &iQ2)

static void calcPolarCoord (double &oR, double &oTheta, const FloatArray &iOrigin, const FloatArray &iPos, const FloatArray &iN, const FloatArray &iT, const EfInput &iEfInput, bool iFlipTangent)

- Static Protected Attributes inherited from oofem::EnrichmentItem
static const double mLevelSetTol = 1.0e-12

static const double mLevelSetRelTol = 1.0e-3


Detailed Description

EnrichmentItem describing an inclusion.

Author
Erik Svenning (among others)
Date
Sep 9, 2014

Definition at line 50 of file inclusion.h.

Constructor & Destructor Documentation

oofem::Inclusion::Inclusion ( int  n,
XfemManager xm,
Domain aDomain
)
oofem::Inclusion::~Inclusion ( )
virtual

Definition at line 58 of file inclusion.C.

References mpCrossSection.

Member Function Documentation

virtual bool oofem::Inclusion::canModifyMaterial ( ) const
inlinevirtual

Reimplemented from oofem::EnrichmentItem.

Definition at line 60 of file inclusion.h.

virtual const char* oofem::Inclusion::giveClassName ( ) const
inlinevirtual
Returns
Class name of the receiver.

Reimplemented from oofem::HybridEI.

Definition at line 66 of file inclusion.h.

CrossSection* oofem::Inclusion::giveCrossSection ( )
inline

Definition at line 69 of file inclusion.h.

virtual const char* oofem::Inclusion::giveInputRecordName ( ) const
inlinevirtual
Returns
Input record name of the receiver.

Reimplemented from oofem::HybridEI.

Definition at line 67 of file inclusion.h.

References _IFT_Inclusion_Name.

IRResultType oofem::Inclusion::initializeFrom ( InputRecord ir)
virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.

See also
IR_GIVE_FIELD
IR_GIVE_OPTIONAL_FIELD
Parameters
irInput record to initialize from.
Returns
IRResultType

Reimplemented from oofem::EnrichmentItem.

Definition at line 86 of file inclusion.C.

References _IFT_Inclusion_CrossSection, oofem::Domain::giveCrossSection(), oofem::FEMComponent::giveDomain(), oofem::EnrichmentItem::initializeFrom(), IR_GIVE_FIELD, and mpCrossSection.

bool oofem::Inclusion::isMaterialModified ( GaussPoint iGP,
Element iEl,
CrossSection *&  opCS
) const
virtual

Member Data Documentation

CrossSection* oofem::Inclusion::mpCrossSection
protected

Definition at line 53 of file inclusion.h.

Referenced by initializeFrom(), isMaterialModified(), and ~Inclusion().


The documentation for this class was generated from the following files:
