Class implementing general initial condition. More...

#include <initialcondition.h>

Inheritance diagram for oofem::InitialCondition:

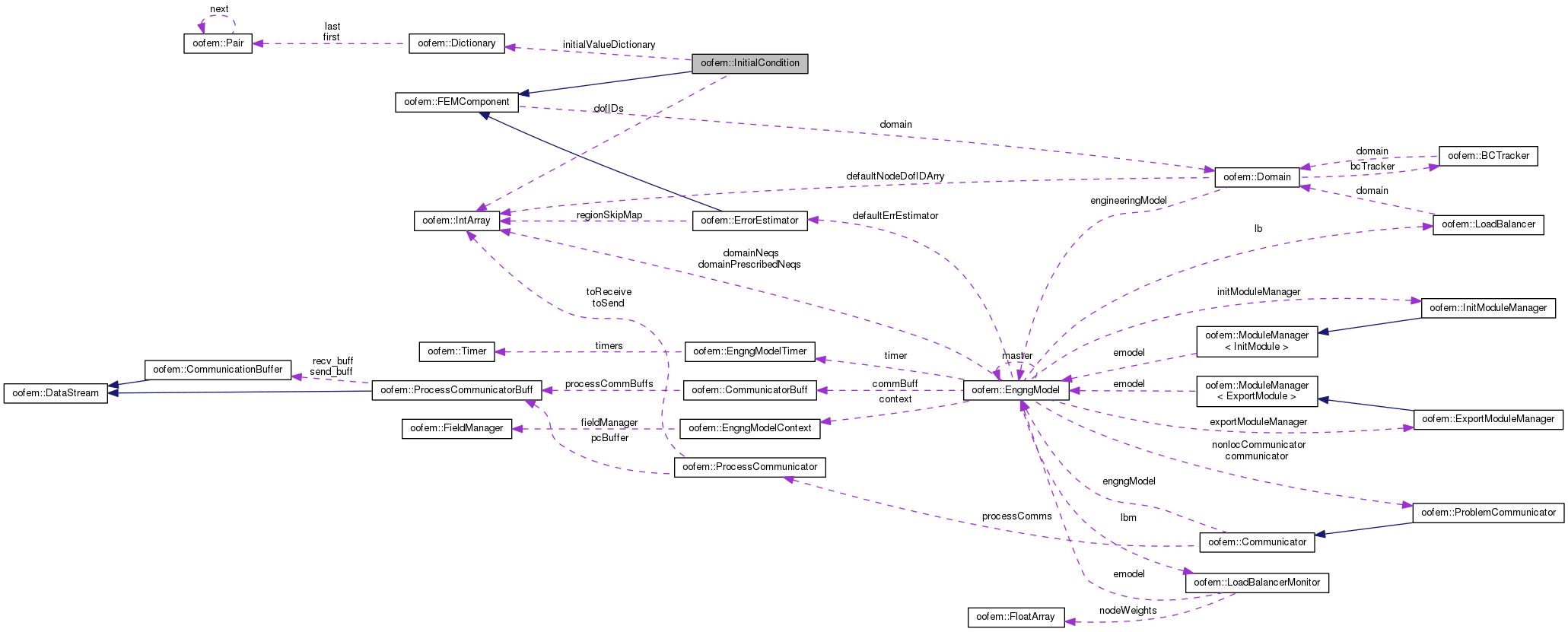

Collaboration diagram for oofem::InitialCondition:

Public Member Functions
	InitialCondition (int i, Domain *d)
	Creates initial condition with given number, belonging to given domain. More...

virtual	~InitialCondition ()
	Destructor. More...

double	give (ValueModeType mode)
	Returns value of initial condition for given unknown mode (determines whether total or velocity or acceleration mode of unknown is requested). More...

bcValType	giveICValType () const
	Returns receiver load type. More...

int	hasConditionOn (int u)
	Tests if receiver has initial condition for specific unknown-mode. More...

int	hasConditionOn (ValueModeType type)
	Tests if receiver has initial condition for specific unknown-mode. More...

virtual void	scale (ValueModeType type, double s)
	Scales the receiver value (determined by ValueModeType) by given value. More...

int	giveSetNumber ()
	Gives the set number which initial condition is applied to. More...

const IntArray &	giveDofIDs ()
	Gives the set number which initial condition is applied to. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual const char *	giveClassName () const

virtual const char *	giveInputRecordName () const

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Private Attributes
Dictionary	initialValueDictionary
	Dictionary of initial values. More...

bcValType	valType
	Physical meaning of bc value. More...

int	set
	Set number. More...

IntArray	dofIDs
	List of dof ids that IC is applied to. More...

Additional Inherited Members
Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Detailed Description

Class implementing general initial condition.

Initial condition is usually attribute of one or more degrees of freedom (DOFs).

The inherited attribute 'componentArray' is not used. It is replaced with the more adequate dictionary 'initialValueDictionary', which entries are referenced by names rather than by indices.

One particular DOF (with its physical meaning - for example displacement) can have associated only single initial condition. Initial condition therefore must represent several initial conditions for particular DOF (for example velocity and acceleration of unknown can be prescribed using single initial condition instance). These multiple entries are distinguished by their ValueModeType value. The ValueModeType value is also used as key in initialValueDictionary.

Initial conditions apply and should be taken into account only in one particular time step, which number is determined from engineering model giveNumberOfTimeStepWhenIcApply service. If in this time step both boundary condition on unknown and also initial condition on value of this unknown (TotalMode ValueModeType) are prescribed, then always value reported by boundary condition is taken into account.

See also: EngngModel::giveNumberOfTimeStepWhenIcApply

Definition at line 78 of file initialcondition.h.

Constructor & Destructor Documentation

oofem::InitialCondition::InitialCondition	(	int	i,
		Domain *	d
	)

inline

Creates initial condition with given number, belonging to given domain.

Parameters

i	Initial condition number.
d	Domain to which new object will belongs.

Definition at line 96 of file initialcondition.h.

virtual oofem::InitialCondition::~InitialCondition ( )

inlinevirtual

Destructor.

Definition at line 98 of file initialcondition.h.

Member Function Documentation

double oofem::InitialCondition::give ( ValueModeType mode )

Returns value of initial condition for given unknown mode (determines whether total or velocity or acceleration mode of unknown is requested).

Parameters

mode	Characteristic mode of unknown, characteristic type depends on DOF (represent physical meaning).

Returns: Value of initial condition for given mode.

Definition at line 40 of file initialcondition.C.

References oofem::Dictionary::at(), oofem::cltypesGiveUnknownTypeModeKey(), hasConditionOn(), and initialValueDictionary.

Referenced by oofem::DofDistributedPrimaryField::applyDefaultInitialCondition(), oofem::PrimaryField::applyDefaultInitialCondition(), oofem::DofDistributedPrimaryField::applyInitialCondition(), oofem::PrimaryField::applyInitialCondition(), oofem::Dof::giveBcValue(), and oofem::MasterDof::giveUnknown().

virtual const char* oofem::InitialCondition::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Implements oofem::FEMComponent.

Definition at line 148 of file initialcondition.h.

const IntArray& oofem::InitialCondition::giveDofIDs ( )

inline

Gives the set number which initial condition is applied to.

Definition at line 143 of file initialcondition.h.

Referenced by oofem::DofDistributedPrimaryField::applyInitialCondition(), and oofem::Domain::createDofs().

bcValType oofem::InitialCondition::giveICValType ( ) const

inline

Returns receiver load type.

It distinguish particular boundary conditions according to their "physical" meaning (like StructuralTemperatureLoadLT, StructuralLoadLT). Derived classes should always overload, default implementation returns UnknownLT value. See cltypes.h file for details.

Returns: Value type.

Definition at line 114 of file initialcondition.h.

virtual const char* oofem::InitialCondition::giveInputRecordName ( ) const

inlinevirtual

Returns: Input record name of the receiver.

Implements oofem::FEMComponent.

Definition at line 149 of file initialcondition.h.

References _IFT_InitialCondition_Name.

int oofem::InitialCondition::giveSetNumber ( )

inline

Gives the set number which initial condition is applied to.

Definition at line 138 of file initialcondition.h.

Referenced by oofem::DofDistributedPrimaryField::applyInitialCondition(), oofem::PrimaryField::applyInitialCondition(), and oofem::Domain::createDofs().

int oofem::InitialCondition::hasConditionOn ( int u )

Tests if receiver has initial condition for specific unknown-mode.

Parameters

u	ValueModeType value of unknown.

Returns: Nonzero if given mode has initial condition, zero otherwise.

Definition at line 53 of file initialcondition.C.

References oofem::Dictionary::includes(), and initialValueDictionary.

Referenced by oofem::DofDistributedPrimaryField::applyDefaultInitialCondition(), oofem::PrimaryField::applyDefaultInitialCondition(), oofem::DofDistributedPrimaryField::applyInitialCondition(), oofem::PrimaryField::applyInitialCondition(), give(), oofem::MasterDof::hasIcOn(), and scale().

int oofem::InitialCondition::hasConditionOn ( ValueModeType type )

Tests if receiver has initial condition for specific unknown-mode.

Parameters

type	ValueModeType of unknown.

Returns: Nonzero if given mode has initial condition, zero otherwise.

Definition at line 61 of file initialcondition.C.

References oofem::cltypesGiveUnknownTypeModeKey(), oofem::Dictionary::includes(), and initialValueDictionary.

IRResultType oofem::InitialCondition::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.
