This class implements a linear boundary load (force, moment,...) that acts on straight segment. More...

#include <linearedgeload.h>

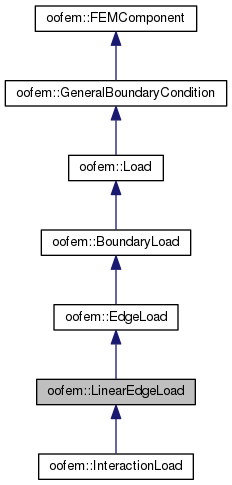

Inheritance diagram for oofem::LinearEdgeLoad:

Collaboration diagram for oofem::LinearEdgeLoad:

Public Member Functions
	LinearEdgeLoad (int i, Domain *d)

virtual int	giveApproxOrder ()

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual bcGeomType	giveBCGeoType () const
	Returns geometry character of boundary condition. More...

virtual FormulationType	giveFormulationType ()
	Specifies is load should take local or global coordinates. More...

virtual const char *	giveClassName () const

virtual const char *	giveInputRecordName () const

Public Member Functions inherited from oofem::EdgeLoad
	EdgeLoad (int i, Domain *d)
	Constructor. More...

Public Member Functions inherited from oofem::BoundaryLoad
	BoundaryLoad (int i, Domain *d)
	Constructor. More...

virtual void	computeValueAt (FloatArray &answer, TimeStep *tStep, const FloatArray &coords, ValueModeType mode)
	Computes components values of load at given point - global coordinates (coordinates given). More...

virtual CoordSystType	giveCoordSystMode ()
	Returns receiver's coordinate system. More...

virtual bcType	giveType () const
	Returns receiver load type. More...

virtual double	giveProperty (int aProperty, TimeStep *tStep, const std::map< std::string, FunctionArgument > &valDict)

virtual double	giveProperty (int aProperty, TimeStep *tStep)
	Returns the value of a property 'aProperty'. More...

virtual double	giveTemperOffset (void)
	Return temperature offset. More...

Public Member Functions inherited from oofem::Load
	Load (int n, Domain *d)
	Constructor. More...

virtual	~Load ()
	Destructor. More...

virtual void	computeValues (FloatArray &answer, TimeStep *tStep, const FloatArray &coords, const IntArray &dofids, ValueModeType mode)
	Computes components values for specified dof ids. More...

int	isDofExcluded (int index)
	Returns the value of dofExcludeMask corresponding to given index. More...

virtual void	scale (double s)
	Scales the receiver according to given value. More...

const FloatArray &	giveComponentArray () const

void	setComponentArray (FloatArray &arry)

Public Member Functions inherited from oofem::GeneralBoundaryCondition
	GeneralBoundaryCondition (int n, Domain *d)
	Constructor. More...

virtual	~GeneralBoundaryCondition ()
	Destructor. More...

int	giveSetNumber ()
	Gives the set number which boundary condition is applied to. More...

virtual int	giveNumberOfInternalDofManagers ()
	Gives the number of internal dof managers. More...

virtual DofManager *	giveInternalDofManager (int i)
	Gives an internal dof manager from receiver. More...

Function *	giveTimeFunction ()

virtual bcValType	giveBCValType () const
	Returns receiver load type. More...

virtual bool	isImposed (TimeStep *tStep)
	Returns nonzero if receiver representing BC is imposed at given time, otherwise returns zero. More...

virtual const IntArray &	giveDofIDs () const
	Array with default dofs which b.c. More...

virtual void	postInitialize ()
	Performs post initialization steps. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Protected Member Functions
virtual void	computeNArray (FloatArray &answer, const FloatArray &coords) const
	Abstract function, for computing approximation matrix of receiver at given point. More...

Protected Member Functions inherited from oofem::BoundaryLoad
virtual void	computeComponentArrayAt (FloatArray &answer, TimeStep *tStep, ValueModeType mode)
	Returns array of load "vertex" values evaluated at given time. More...

Protected Attributes
FloatArray	startCoords
	Coordinates of start and end point. More...

FloatArray	endCoords

FormulationType	formulation

Protected Attributes inherited from oofem::BoundaryLoad
bcType	lType
	Load type (its physical meaning). More...

CoordSystType	coordSystemType
	Load coordinate system. More...

Dictionary	propertyDictionary
	Additional b.c properties. More...

Dictionary	propertyTimeFunctDictionary
	Optional time-functions for properties. More...

double	temperOffset
	Temperature offset with regards to Kelvin. Default is 273.15. More...

Protected Attributes inherited from oofem::Load
FloatArray	componentArray
	Components of boundary condition. More...

IntArray	dofExcludeMask
	The load is specified for all dofs of object to which is associated. More...

Protected Attributes inherited from oofem::GeneralBoundaryCondition
int	timeFunction
	Associated load time function. More...

bcValType	valType
	Physical meaning of BC value. More...

IntArray	dofs
	Dofs that b.c. is applied to (relevant for Dirichlet type b.c.s). More...

int	isImposedTimeFunction
	Zero by default - the BC is than always imposed. More...

int	set
	Set number for boundary condition to be applied to. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Additional Inherited Members
Public Types inherited from oofem::BoundaryLoad
enum	BL_CoordSystType { BL_GlobalMode, BL_LocalMode, BL_UpdatedGlobalMode }
	Load coordinate system type. More...

Public Types inherited from oofem::Load
enum	CoordSystType { CST_Global, CST_Local, CST_UpdatedGlobal }
	Load coordinate system type. More...

enum	FormulationType { FT_Entity, FT_Global }
	Type determining the type of formulation (entity local or global one). More...

Public Attributes inherited from oofem::BoundaryLoad
CoordSystType	CST_UpdatedGlobal

ScalarFunction	propertyMultExpr
	Expression to multiply all properties. More...

Public Attributes inherited from oofem::Load
bool	reference

Detailed Description

This class implements a linear boundary load (force, moment,...) that acts on straight segment.

A boundary load is usually attribute of one or more elements.

The boundary load describes its geometry and values (it is assumed, that user will specify all necessary dofs) on element boundary using isoparametric approximation. Elements can request the order of approximation (for setting up the appropriate integration rule order) and the array of values (for each dof) at specific integration point on the boundary.

Elements must take care, on which boundary the load acts on (side number, ...).

Note: {This class is not restricted to structural problems. For example, in thermal analysis, a boundary load load would be a heat source.}

Definition at line 68 of file linearedgeload.h.

Constructor & Destructor Documentation

oofem::LinearEdgeLoad::LinearEdgeLoad	(	int	i,
		Domain *	d
	)

inline

Definition at line 76 of file linearedgeload.h.

Member Function Documentation

void oofem::LinearEdgeLoad::computeNArray	(	FloatArray &	answer,
		const FloatArray &	coords
	)		const

protectedvirtual

Abstract function, for computing approximation matrix of receiver at given point.

The product of approximation matrix with "vertex" values array attribute will produce load components in given point.

Parameters

answer	Approximation vector.
coords	Global integration point coordinates.

Implements oofem::BoundaryLoad.

Reimplemented in oofem::InteractionLoad.

Definition at line 80 of file linearedgeload.C.

References oofem::FloatArray::at(), oofem::FloatArray::distance(), endCoords, formulation, oofem::Load::FT_Global, oofem::FloatArray::giveSize(), OOFEM_WARNING, oofem::FloatArray::resize(), startCoords, oofem::FloatArray::subtract(), and oofem::FloatArray::zero().

Referenced by oofem::InteractionLoad::computeNArray().

virtual int oofem::LinearEdgeLoad::giveApproxOrder ( )

inlinevirtual

Returns: Approximation order of load geometry.

Implements oofem::BoundaryLoad.

Reimplemented in oofem::InteractionLoad.

Definition at line 78 of file linearedgeload.h.

virtual bcGeomType oofem::LinearEdgeLoad::giveBCGeoType ( ) const

inlinevirtual

Returns geometry character of boundary condition.

For available values see cltypes.h file. Derived classes should always overload, default implementation returns UnknownLoadGT value.

Reimplemented from oofem::GeneralBoundaryCondition.

Reimplemented in oofem::InteractionLoad.

Definition at line 81 of file linearedgeload.h.

References oofem::EdgeLoadBGT.

virtual const char* oofem::LinearEdgeLoad::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Implements oofem::FEMComponent.

Reimplemented in oofem::InteractionLoad.

Definition at line 84 of file linearedgeload.h.

virtual FormulationType oofem::LinearEdgeLoad::giveFormulationType ( )

inlinevirtual

Specifies is load should take local or global coordinates.

Reimplemented from oofem::Load.

Reimplemented in oofem::InteractionLoad.

Definition at line 82 of file linearedgeload.h.

void oofem::LinearEdgeLoad::giveInputRecord ( DynamicInputRecord & input )

virtual

Setups the input record string of receiver.

Parameters

input Dynamic input record to be filled by receiver.

Reimplemented from oofem::BoundaryLoad.

Reimplemented in oofem::InteractionLoad.

Definition at line 68 of file linearedgeload.C.

References _IFT_LinearEdgeLoad_endcoord, _IFT_LinearEdgeLoad_formulation, _IFT_LinearEdgeLoad_startcoord, endCoords, formulation, oofem::Load::FT_Global, oofem::BoundaryLoad::giveInputRecord(), oofem::DynamicInputRecord::setField(), and startCoords.

Referenced by oofem::InteractionLoad::giveInputRecord().

virtual const char* oofem::LinearEdgeLoad::giveInputRecordName ( ) const

inlinevirtual

Returns: Input record name of the receiver.

Implements oofem::FEMComponent.

Reimplemented in oofem::InteractionLoad.

Definition at line 85 of file linearedgeload.h.

References _IFT_LinearEdgeLoad_Name.

IRResultType oofem::LinearEdgeLoad::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

Reads number of dofs into nDofs attribute (i.e. the number of dofs, which are on loaded entity), its loadType into loadType attribute and coordinate system type into csType attribute.

Reimplemented from oofem::BoundaryLoad.

Reimplemented in oofem::InteractionLoad.

Definition at line 45 of file linearedgeload.C.

References _IFT_LinearEdgeLoad_endcoord, _IFT_LinearEdgeLoad_formulation, _IFT_LinearEdgeLoad_startcoord, endCoords, formulation, oofem::Load::FT_Entity, oofem::Load::FT_Global, oofem::BoundaryLoad::initializeFrom(), IR_GIVE_FIELD, IR_GIVE_OPTIONAL_FIELD, oofem::IRRT_NOTFOUND, oofem::FloatArray::isEmpty(), OOFEM_WARNING, and startCoords.
