Abstract base class representing Level Set representation of material interfaces. More...

#include <levelsetpcs.h>

Inheritance diagram for oofem::LevelSetPCS:

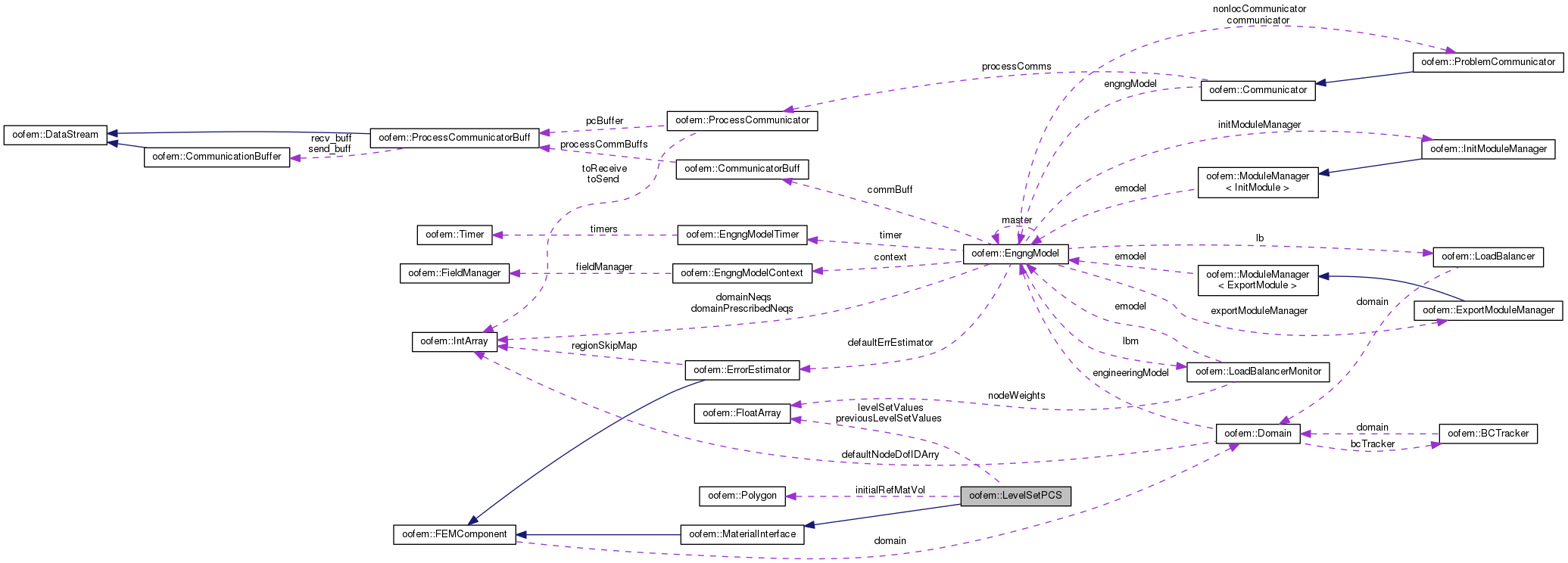

Collaboration diagram for oofem::LevelSetPCS:

Public Member Functions
	LevelSetPCS (int n, Domain *d)
	Constructor. More...

virtual void	initialize ()
	Initializes receiver. More...

virtual void	updatePosition (TimeStep *tStep)
	Updates the position of interface according to state reached in given solution step. More...

virtual void	updateYourself (TimeStep *tStep)
	Updates element state after equilibrium in time step has been reached. More...

virtual double	computeCriticalTimeStep (TimeStep *tStep)
	Computes critical time step induced by receiver integration algorithm. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual void	reinitialization (TimeStep *tStep)

virtual void	giveMaterialMixtureAt (FloatArray &answer, FloatArray &position)
	Returns relative material contents at given point. More...

virtual void	giveElementMaterialMixture (FloatArray &answer, int ielem)
	Returns volumetric (or other based measure) of relative material contents in given element. More...

virtual double	giveNodalScalarRepresentation (int i)
	Returns scalar value representation of material Interface at given point. More...

double	giveLevelSetDofManValue (int i)
	Returns level set value in specific node. More...

virtual const char *	giveClassName () const

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

Public Member Functions inherited from oofem::MaterialInterface
	MaterialInterface (int n, Domain *d)
	Constructor. More...

virtual const char *	giveInputRecordName () const

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Protected Types
enum	PCSEqType { PCS_levelSetUpdate, PCS_levelSetRedistance }

Protected Member Functions
void	pcs_stage1 (FloatArray &ls, FloatArray &fs, FloatArray &w, TimeStep *tStep, PCSEqType t)

double	evalElemFContribution (PCSEqType t, int ie, TimeStep *tStep)

double	evalElemfContribution (PCSEqType t, int ie, TimeStep *tStep)

void	redistance (TimeStep *tStep)
	Reinitializes the level set representation by solving $d_{\tau} = S(\phi)(1-\|\nabla d\|)$ to steady state. More...

Fast marching related services
void	FMMReinitialization (FloatArray &ls)
	Reinitializes the level set representation using fast marching method. More...

Protected Attributes
FloatArray	levelSetValues
	Array used to store value of level set function for each node. More...

FloatArray	previousLevelSetValues

Polygon	initialRefMatVol

bool	initialRefMatFlag

int	ci1
	Indexes of nodal coordinates used to init levelset using initialRefMatVol. More...

int	ci2

int	reinit_alg
	Type of reinitialization algorithm to use. More...

double	reinit_dt
	Time step used in reinitialization of LS (if apply). More...

bool	reinit_dt_flag

double	reinit_err
	Reinitialization error limit. More...

int	nsd
	number of spatial dimensions. More...

long int	levelSetVersion
	Level set values version. More...

std::vector< FloatArray >	elemVof

long int	elemVofLevelSetVersion

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Detailed Description

Abstract base class representing Level Set representation of material interfaces.

The solution algorithm is based on positive coefficient scheme. This algorithm is limited to d-dimensional simplexes with linear approximation. Its typical use to model moving interface (such as free surface) in a fixed-grid methods (as typically used in CFD). The basic tasks are representation of interface and its updating.

Definition at line 114 of file levelsetpcs.h.

Member Enumeration Documentation

enum oofem::LevelSetPCS::PCSEqType

protected

Enumerator
PCS_levelSetUpdate
PCS_levelSetRedistance

Definition at line 119 of file levelsetpcs.h.

Constructor & Destructor Documentation

oofem::LevelSetPCS::LevelSetPCS	(	int	n,
		Domain *	d
	)

inline

Constructor.

Takes two two arguments. Creates a MaterialInterface instance with given number and belonging to given domain.

Parameters

n	Component number in particular domain. For instance, can represent node number in particular domain.
d	Domain to which component belongs to.

Definition at line 149 of file levelsetpcs.h.

Member Function Documentation

double oofem::LevelSetPCS::computeCriticalTimeStep ( TimeStep * tStep )

virtual

Computes critical time step induced by receiver integration algorithm.

Implements oofem::MaterialInterface.

Definition at line 249 of file levelsetpcs.C.

double oofem::LevelSetPCS::evalElemFContribution	(	PCSEqType	t,
		int	ie,
		TimeStep *	tStep
	)

protected

Definition at line 537 of file levelsetpcs.C.

References oofem::FEMComponent::domain, oofem::Domain::giveElement(), oofem::FEMComponent::giveInterface(), oofem::LevelSetPCSElementInterfaceType, oofem::LevelSetPCSElementInterface::LS_PCS_computeF(), PCS_levelSetRedistance, and PCS_levelSetUpdate.

Referenced by pcs_stage1().

double oofem::LevelSetPCS::evalElemfContribution	(	PCSEqType	t,
		int	ie,
		TimeStep *	tStep
	)

protected

Definition at line 552 of file levelsetpcs.C.

References oofem::FEMComponent::domain, oofem::Domain::giveElement(), oofem::FEMComponent::giveInterface(), oofem::LevelSetPCSElementInterfaceType, oofem::LevelSetPCSElementInterface::LS_PCS_computeS(), PCS_levelSetRedistance, and PCS_levelSetUpdate.

Referenced by pcs_stage1().

void oofem::LevelSetPCS::FMMReinitialization ( FloatArray & ls )

protected

Reinitializes the level set representation using fast marching method.

Definition at line 567 of file levelsetpcs.C.

References oofem::FloatArray::at(), oofem::FEMComponent::domain, oofem::Element::giveDofManagerNumber(), oofem::Domain::giveElement(), giveLevelSetDofManValue(), oofem::Domain::giveNumberOfDofManagers(), oofem::Element::giveNumberOfDofManagers(), oofem::Domain::giveNumberOfElements(), oofem::FloatArray::resize(), and oofem::FastMarchingMethod::solve().

Referenced by reinitialization().

virtual const char* oofem::LevelSetPCS::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Implements oofem::FEMComponent.

Definition at line 171 of file levelsetpcs.h.

void oofem::LevelSetPCS::giveElementMaterialMixture	(	FloatArray &	answer,
		int	ielem
	)

virtual

Returns volumetric (or other based measure) of relative material contents in given element.

Implements oofem::MaterialInterface.

Definition at line 289 of file levelsetpcs.C.

References oofem::FloatArray::at(), oofem::FEMComponent::domain, elemVof, elemVofLevelSetVersion, oofem::Element::giveDofManagerNumber(), oofem::Domain::giveElement(), oofem::FEMComponent::giveInterface(), oofem::Domain::giveNumberOfElements(), oofem::Element::giveNumberOfNodes(), oofem::LevelSetPCSElementInterfaceType, levelSetValues, levelSetVersion, oofem::LevelSetPCSElementInterface::LS_PCS_computeVOFFractions(), and oofem::FloatArray::resize().

void oofem::LevelSetPCS::giveInputRecord ( DynamicInputRecord & input )

virtual

Setups the input record string of receiver.

Parameters

input Dynamic input record to be filled by receiver.

Reimplemented from oofem::FEMComponent.

Definition at line 125 of file levelsetpcs.C.

References OOFEM_ERROR.

double oofem::LevelSetPCS::giveLevelSetDofManValue ( int i )

inline

Returns level set value in specific node.

Definition at line 168 of file levelsetpcs.h.

References oofem::FloatArray::at().

Referenced by FMMReinitialization(), oofem::Tet1_3D_SUPG::LS_PCS_computeF(), oofem::TR21_2D_SUPG::LS_PCS_computeF(), oofem::Quad10_2D_SUPG::LS_PCS_computeF(), oofem::TR1_2D_SUPG::LS_PCS_computeF(), oofem::Tet1_3D_SUPG::LS_PCS_computeS(), oofem::TR21_2D_SUPG::LS_PCS_computeS(), and oofem::TR1_2D_SUPG::LS_PCS_computeS().

void oofem::LevelSetPCS::giveMaterialMixtureAt	(	FloatArray &	answer,
		FloatArray &	position
	)

virtual

Returns relative material contents at given point.

Usually only one material is presented in given point, but some smoothing may be applied close to material interface to make transition smooth

Implements oofem::MaterialInterface.

Definition at line 256 of file levelsetpcs.C.

References oofem::FloatArray::at(), oofem::Element::computeLocalCoordinates(), oofem::FEMComponent::domain, oofem::Element::giveDofManagerNumber(), oofem::SpatialLocalizer::giveElementContainingPoint(), oofem::FEMComponent::giveInterface(), oofem::Element::giveNumberOfNodes(), oofem::Domain::giveSpatialLocalizer(), oofem::LevelSetPCSElementInterfaceType, levelSetValues, N, OOFEM_ERROR, and oofem::FloatArray::resize().

virtual double oofem::LevelSetPCS::giveNodalScalarRepresentation ( int )

inlinevirtual

Returns scalar value representation of material Interface at given point.

For visualization

Implements oofem::MaterialInterface.

Definition at line 165 of file levelsetpcs.h.

References oofem::FloatArray::at().

void oofem::LevelSetPCS::initialize ( )

virtual

Initializes receiver.

Reimplemented from oofem::MaterialInterface.

Definition at line 50 of file levelsetpcs.C.

References oofem::FloatArray::at(), ci1, ci2, oofem::FEMComponent::domain, oofem::Node::giveCoordinate(), oofem::Domain::giveNode(), oofem::Domain::giveNumberOfDofManagers(), oofem::FloatArray::giveSize(), initialRefMatFlag, initialRefMatVol, levelSetValues, levelSetVersion, OOFEM_ERROR, oofem::Polygon::pointDistance(), previousLevelSetValues, and oofem::FloatArray::resize().

IRResultType oofem::LevelSetPCS::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.

See also: IR_GIVE_FIELD; IR_GIVE_OPTIONAL_FIELD

Parameters

ir	Input record to initialize from.

Returns: IRResultType

Reimplemented from oofem::FEMComponent.

Definition at line 75 of file levelsetpcs.C.

References _IFT_LevelSetPCS_ci1, _IFT_LevelSetPCS_ci2, _IFT_LevelSetPCS_levelSetValues, _IFT_LevelSetPCS_nsd, _IFT_LevelSetPCS_refmatpoly_x, _IFT_LevelSetPCS_refmatpoly_y, _IFT_LevelSetPCS_reinit_alg, _IFT_LevelSetPCS_reinit_dt, _IFT_LevelSetPCS_reinit_err, oofem::Polygon::addVertex(), oofem::FloatArray::at(), ci1, ci2, oofem::FloatArray::giveSize(), initialRefMatFlag, initialRefMatVol, IR_GIVE_OPTIONAL_FIELD, oofem::IRRT_OK, nsd, previousLevelSetValues, reinit_alg, reinit_dt, reinit_dt_flag, reinit_err, and oofem::Vertex::setCoords().

void oofem::LevelSetPCS::pcs_stage1	(	FloatArray &	ls,
		FloatArray &	fs,
		FloatArray &	w,
		TimeStep *	tStep,
		PCSEqType	t
	)

protected

Definition at line 446 of file levelsetpcs.C.

References oofem::FloatArray::at(), oofem::FloatMatrix::at(), oofem::FloatArray::beTProductOf(), oofem::FloatArray::computeNorm(), oofem::FEMComponent::domain, oofem::FloatArray::dotProduct(), evalElemFContribution(), evalElemfContribution(), oofem::Element::giveDofManagerNumber(), oofem::Domain::giveElement(), oofem::FEMComponent::giveInterface(), oofem::Domain::giveNumberOfDofManagers(), oofem::Domain::giveNumberOfElements(), oofem::Element::giveNumberOfNodes(), oofem::LevelSetPCSElementInterfaceType, oofem::LevelSetPCSElementInterface::LS_PCS_computedN(), oofem::LevelSetPCSElementInterface::LS_PCS_computeVolume(), oofem::macbra(), oofem::max(), oofem::negbra(), nsd, OOFEM_ERROR, OOFEM_LOG_INFO, oofem::FloatArray::resize(), and oofem::FloatArray::zero().

Referenced by redistance(), and updatePosition().

void oofem::LevelSetPCS::redistance ( TimeStep * tStep )

protected

Reinitializes the level set representation by solving $d_{\tau} = S(\phi)(1-|\nabla d|)$ to steady state.

Definition at line 350 of file levelsetpcs.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), oofem::FEMComponent::domain, oofem::Element::giveDofManagerNumber(), oofem::Domain::giveElement(), oofem::Domain::giveNumberOfDofManagers(), oofem::Domain::giveNumberOfElements(), oofem::Element::giveNumberOfNodes(), oofem::TimeStep::giveTimeIncrement(), levelSetValues, oofem::max(), OOFEM_LOG_INFO, PCS_levelSetRedistance, pcs_stage1(), reinit_dt, reinit_dt_flag, and reinit_err.

Referenced by reinitialization().

void oofem::LevelSetPCS::reinitialization ( TimeStep * tStep )

virtual

Definition at line 333 of file levelsetpcs.C.

References FMMReinitialization(), levelSetValues, OOFEM_ERROR, redistance(), and reinit_alg.

Referenced by updatePosition().

contextIOResultType oofem::LevelSetPCS::restoreContext	(	DataStream &	stream,
		ContextMode	mode,
		void *	obj = `NULL`
	)

virtual

Restores the receiver state previously written in stream.

See also: saveContext

Parameters

stream	Input stream.
mode	Determines amount of info available in stream (state, definition, ...).
obj	Special parameter for sending extra information.

Returns: contextIOResultType.

Exceptions

throws an ContextIOERR exception if error encountered.

Reimplemented from oofem::FEMComponent.

Definition at line 641 of file levelsetpcs.C.

References oofem::CIO_IOERR, oofem::CIO_OK, elemVofLevelSetVersion, levelSetValues, levelSetVersion, previousLevelSetValues, oofem::DataStream::read(), oofem::FloatArray::restoreYourself(), and THROW_CIOERR.

contextIOResultType oofem::LevelSetPCS::saveContext	(	DataStream &	stream,
		ContextMode	mode,
		void *	obj = `NULL`
	)

virtual

Stores receiver state to output stream.

Parameters

stream	Output stream.
mode	Determines amount of info required in stream (state, definition, ...).
obj	Special parameter, used only to send particular integration point to material class version of this method.

Returns: contextIOResultType.

Exceptions

throws an ContextIOERR exception if error encountered.

Reimplemented from oofem::FEMComponent.

Definition at line 624 of file levelsetpcs.C.

References oofem::CIO_IOERR, oofem::CIO_OK, levelSetValues, levelSetVersion, oofem::FloatArray::storeYourself(), THROW_CIOERR, and oofem::DataStream::write().

void oofem::LevelSetPCS::updatePosition ( TimeStep * tStep )

virtual

Updates the position of interface according to state reached in given solution step.

Implements oofem::MaterialInterface.

Definition at line 133 of file levelsetpcs.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), oofem::FloatMatrix::at(), oofem::FEMComponent::domain, oofem::FloatArray::dotProduct(), oofem::Domain::giveConnectivityTable(), oofem::Domain::giveDofManager(), oofem::Element::giveDofManagerNumber(), oofem::ConnectivityTable::giveDofManConnectivityArray(), oofem::Domain::giveElement(), oofem::FEMComponent::giveInterface(), oofem::Domain::giveNumberOfDofManagers(), oofem::Element::giveNumberOfNodes(), oofem::TimeStep::givePreviousStep(), oofem::IntArray::giveSize(), oofem::TimeStep::giveTimeIncrement(), oofem::DofManager::giveUnknownVector(), oofem::LevelSetPCSElementInterfaceType, levelSetValues, levelSetVersion, oofem::LevelSetPCSElementInterface::LS_PCS_computedN(), oofem::LevelSetPCSElementInterface::LS_PCS_computeVolume(), nsd, PCS_levelSetUpdate, pcs_stage1(), previousLevelSetValues, and reinitialization().

virtual void oofem::LevelSetPCS::updateYourself ( TimeStep * tStep )

inlinevirtual

Updates element state after equilibrium in time step has been reached.

All temporary history variables, which now describe equilibrium state should be copied into equilibrium ones. The existing internal state is used for update.

Implements oofem::MaterialInterface.

Definition at line 157 of file levelsetpcs.h.
