oofem::MicroplaneMaterial Class Referenceabstract

Abstract base class for all microplane models. More...

#include <microplanematerial.h>

+ Inheritance diagram for oofem::MicroplaneMaterial:

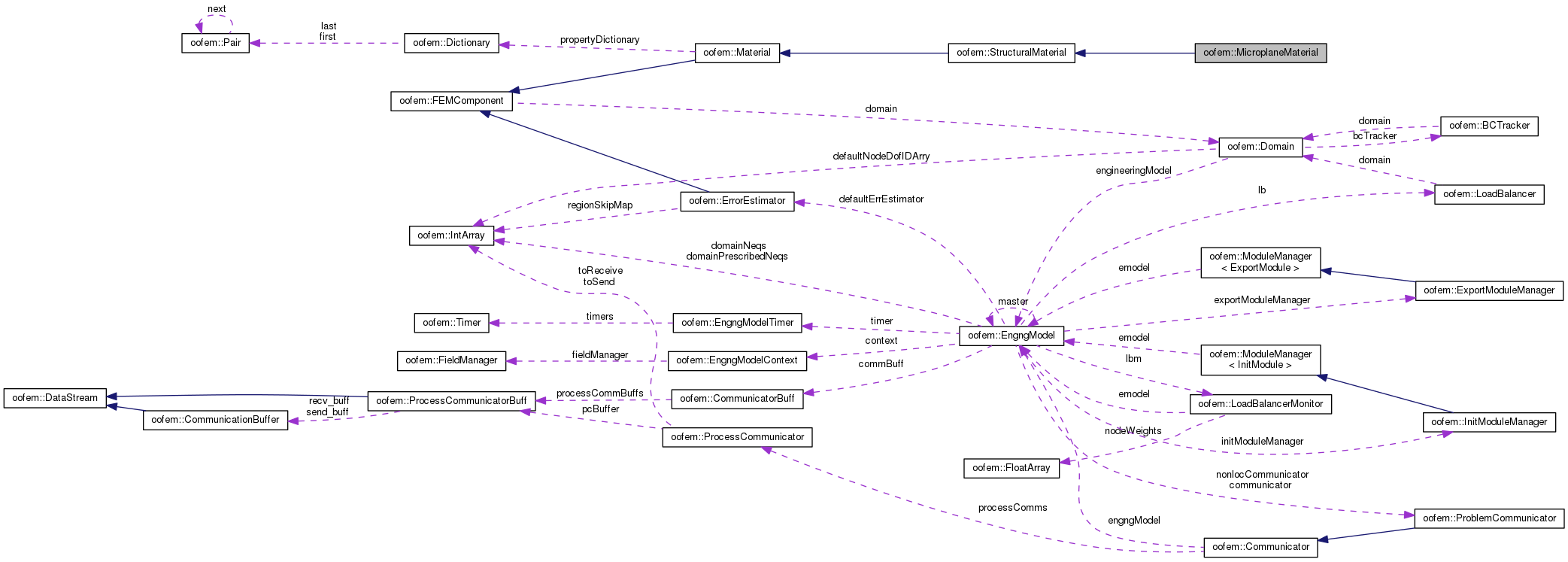

+ Collaboration diagram for oofem::MicroplaneMaterial:

Public Member Functions

 MicroplaneMaterial (int n, Domain *d)
 Constructor. More...

virtual ~MicroplaneMaterial ()
 Destructor. More...

virtual void giveRealMicroplaneStressVector (FloatArray &answer, Microplane *mplane, const FloatArray &strain, TimeStep *tStep)=0
 Computes real stress vector on given microplane (the meaning of values depends on particular implementation, e.g, can contain volumetric, deviatoric normal stresses and shear stresses on microplane) for given increment of microplane strains. More...

double computeNormalStrainComponent (Microplane *mplane, const FloatArray &macroStrain)
 Computes the length of normal strain vector on given microplane. More...

double computeNormalVolumetricStrainComponent (Microplane *mplane, const FloatArray &macroStrain)
 Computes the normal volumetric component of macro strain on given microplane. More...

double computeNormalDeviatoricStrainComponent (Microplane *mplane, const FloatArray &macroStrain)
 Computes the normal deviatoric component of macro strain on given microplane. More...

double computeShearMStrainComponent (Microplane *mplane, const FloatArray &macroStrain)
 Computes the shear component (in m direction) of macro strain on given microplane. More...

double computeShearLStrainComponent (Microplane *mplane, const FloatArray &macroStrain)
 Computes the shear component (in l direction) of macro strain on given microplane. More...

void computeStrainVectorComponents (FloatArray &answer, Microplane *mplane, const FloatArray &macroStrain)
 Computes the vector of all micro stress components (Ev, En, Em, El) of macro strain vector on given microplane. More...

virtual void giveMicroplaneNormal (FloatArray &answer, Microplane *mplane)
 Computes normal of given microplane. More...

virtual double giveMicroplaneIntegrationWeight (Microplane *mplane)
 Returns microplane integration weight. More...

MicroplanegiveMicroplane (int i, GaussPoint *masterGp)
 Returns i-th microplane belonging to master-macro-integration point. )-based indexing. More...

virtual void initializeData (int numberOfMicroplanes)
 Initializes internal data (integration weights, microplane normals and computes projection tensors). More...

virtual MaterialMode giveCorrespondingSlaveMaterialMode (MaterialMode masterMode)
 Returns corresponding material mode for microplane according to macro integration mode. More...

virtual void give3dMaterialStiffnessMatrix (FloatMatrix &answer, MatResponseMode mode, GaussPoint *gp, TimeStep *tStep)
 Computes full 3d material stiffness matrix at given integration point, time, respecting load history in integration point. More...

virtual contextIOResultType saveIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
 Stores integration point state to output stream. More...

virtual contextIOResultType restoreIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
 Reads integration point state to output stream. More...

virtual IRResultType initializeFrom (InputRecord *ir)
 Initializes receiver according to object description stored in input record. More...

virtual void giveInputRecord (DynamicInputRecord &input)
 Setups the input record string of receiver. More...

virtual IntegrationPointStatusgiveMicroplaneStatus (GaussPoint *gp)

- Public Member Functions inherited from oofem::StructuralMaterial
 StructuralMaterial (int n, Domain *d)
 Constructor. More...

virtual ~StructuralMaterial ()
 Destructor. More...

virtual int hasMaterialModeCapability (MaterialMode mode)
 Tests if material supports material mode. More...

virtual const char * giveClassName () const

virtual void giveStiffnessMatrix (FloatMatrix &answer, MatResponseMode mode, GaussPoint *gp, TimeStep *tStep)
 Computes the stiffness matrix for giveRealStressVector of receiver in given integration point, respecting its history. More...

virtual void giveRealStressVector (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedStrain, TimeStep *tStep)
 Computes the real stress vector for given total strain and integration point. More...

virtual void giveRealStressVector_3d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector for second Piola-Kirchoff stress. More...

virtual void giveRealStressVector_PlaneStrain (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_3d. More...

virtual void giveRealStressVector_StressControl (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, const IntArray &strainControl, TimeStep *tStep)
 Iteratively calls giveRealStressVector_3d to find the stress controlled equal to zero¬∑ More...

virtual void giveRealStressVector_ShellStressControl (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, const IntArray &strainControl, TimeStep *tStep)

virtual void giveRealStressVector_PlaneStress (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_StressControl. More...

virtual void giveRealStressVector_1d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_StressControl. More...

virtual void giveRealStressVector_Warping (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_StressControl. More...

virtual void giveRealStressVector_2dBeamLayer (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_StressControl. More...

virtual void giveRealStressVector_PlateLayer (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_StressControl. More...

virtual void giveRealStressVector_Fiber (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation relies on giveRealStressVector_StressControl. More...

virtual void giveRealStressVector_Lattice2d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)

virtual void giveRealStressVector_Lattice3d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)

virtual void giveRealStressVector_2dPlateSubSoil (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedE, TimeStep *tStep)
 Default implementation is not provided. More...

virtual void giveEshelbyStressVector_PlaneStrain (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)
 Prototype for computation of Eshelby stress. More...

void give_dPdF_from (const FloatMatrix &dSdE, FloatMatrix &answer, GaussPoint *gp)

void convert_dSdE_2_dPdF (FloatMatrix &answer, const FloatMatrix &dSdE, const FloatArray &S, const FloatArray &F, MaterialMode matMode)

virtual void giveThermalDilatationVector (FloatArray &answer, GaussPoint *gp, TimeStep *tStep)
 Returns a vector of coefficients of thermal dilatation in direction of each material principal (local) axis. More...

double giveReferenceTemperature ()
 Returns the reference temperature of receiver. More...

virtual void computeStressIndependentStrainVector (FloatArray &answer, GaussPoint *gp, TimeStep *tStep, ValueModeType mode)
 Computes reduced strain vector in given integration point, generated by internal processes in material, which are independent on loading in particular integration point. More...

virtual void give3dMaterialStiffnessMatrix_dPdF (FloatMatrix &answer, MatResponseMode mode, GaussPoint *gp, TimeStep *tStep)

virtual void give3dMaterialStiffnessMatrix_dCde (FloatMatrix &answer, MatResponseMode mode, GaussPoint *gp, TimeStep *tStep)

void giveStressDependentPartOfStrainVector (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedStrainVector, TimeStep *tStep, ValueModeType mode)
 Method for subtracting from reduced space strain vector its stress-independent parts (caused by temperature, shrinkage, creep and possibly by other phenomena). More...

virtual int setIPValue (const FloatArray &value, GaussPoint *gp, InternalStateType type)
 Sets the value of a certain variable at a given integration point to the given value. More...

virtual int giveIPValue (FloatArray &answer, GaussPoint *gp, InternalStateType type, TimeStep *tStep)
 Returns the integration point corresponding value in Reduced form. More...

virtual void give2dBeamLayerStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing 2d beam layer stiffness matrix of receiver. More...

virtual void givePlateLayerStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing 2d plate layer stiffness matrix of receiver. More...

virtual void giveFiberStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing 1d fiber stiffness matrix of receiver. More...

virtual void give2dLatticeStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing 2d lattice stiffness matrix of receiver. More...

virtual void give3dLatticeStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing 3d lattice stiffness matrix of receiver. More...

virtual void give2dPlateSubSoilStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing stiffness matrix of plate subsoil model. More...

virtual void giveFirstPKStressVector_3d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)
 Default implementation relies on giveRealStressVector for second Piola-Kirchoff stress. More...

virtual void giveFirstPKStressVector_PlaneStrain (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)
 Default implementation relies on giveFirstPKStressVector_3d. More...

virtual void giveFirstPKStressVector_PlaneStress (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)
 Default implementation relies on giveFirstPKStressVector_3d. More...

virtual void giveFirstPKStressVector_1d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)
 Default implementation relies on giveFirstPKStressVector_3d. More...

virtual void giveCauchyStressVector_3d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)

virtual void giveCauchyStressVector_PlaneStrain (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)

virtual void giveCauchyStressVector_PlaneStress (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)

virtual void giveCauchyStressVector_1d (FloatArray &answer, GaussPoint *gp, const FloatArray &reducedF, TimeStep *tStep)

virtual void givePlaneStressStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing plane stress stiffness matrix of receiver. More...

virtual void givePlaneStressStiffMtrx_dPdF (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)

virtual void givePlaneStressStiffMtrx_dCde (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)

virtual void givePlaneStrainStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing plane strain stiffness matrix of receiver. More...

virtual void givePlaneStrainStiffMtrx_dPdF (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)

virtual void givePlaneStrainStiffMtrx_dCde (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)

virtual void give1dStressStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)
 Method for computing 1d stiffness matrix of receiver. More...

virtual void give1dStressStiffMtrx_dPdF (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)

virtual void give1dStressStiffMtrx_dCde (FloatMatrix &answer, MatResponseMode mmode, GaussPoint *gp, TimeStep *tStep)

- Public Member Functions inherited from oofem::Material
 Material (int n, Domain *d)
 Constructor. More...

virtual ~Material ()
 Destructor. More...

virtual bool isCharacteristicMtrxSymmetric (MatResponseMode rMode)
 Returns true if stiffness matrix of receiver is symmetric Default implementation returns true. More...

virtual double give (int aProperty, GaussPoint *gp)
 Returns the value of material property 'aProperty'. More...

virtual bool hasProperty (int aProperty, GaussPoint *gp)
 Returns true if 'aProperty' exists on material. More...

virtual void modifyProperty (int aProperty, double value, GaussPoint *gp)
 Modify 'aProperty', which already exists on material. More...

double giveCastingTime ()

bool isActivated (TimeStep *tStep)

virtual int hasNonLinearBehaviour ()
 Returns nonzero if receiver is non linear. More...

virtual void printYourself ()
 Prints receiver state on stdout. Useful for debugging. More...

virtual int initMaterial (Element *element)
 Optional function to call specific procedures when initializing a material. More...

virtual MaterialStatusgiveStatus (GaussPoint *gp) const
 Returns material status of receiver in given integration point. More...

virtual int packUnknowns (DataStream &buff, TimeStep *tStep, GaussPoint *ip)
 Pack all necessary data of integration point (according to element parallel_mode) into given communication buffer. More...

virtual int unpackAndUpdateUnknowns (DataStream &buff, TimeStep *tStep, GaussPoint *ip)
 Unpack and updates all necessary data of given integration point (according to element parallel_mode) into given communication buffer. More...

virtual int estimatePackSize (DataStream &buff, GaussPoint *ip)
 Estimates the necessary pack size to hold all packed data of receiver. More...

virtual double predictRelativeComputationalCost (GaussPoint *gp)
 Returns the weight representing relative computational cost of receiver The reference material model is linear isotropic material - its weight is set to 1.0 The other material models should compare to this reference model. More...

virtual double predictRelativeRedistributionCost (GaussPoint *gp)
 Returns the relative redistribution cost of the receiver. More...

virtual MaterialStatusCreateStatus (GaussPoint *gp) const
 Creates new copy of associated status and inserts it into given integration point. More...

- Public Member Functions inherited from oofem::FEMComponent
 FEMComponent (int n, Domain *d)
 Regular constructor, creates component with given number and belonging to given domain. More...

virtual ~FEMComponent ()
 Virtual destructor. More...

virtual const char * giveInputRecordName () const =0

DomaingiveDomain () const

virtual void setDomain (Domain *d)
 Sets associated Domain. More...

int giveNumber () const

void setNumber (int num)
 Sets number of receiver. More...

virtual void updateLocalNumbering (EntityRenumberingFunctor &f)
 Local renumbering support. More...

virtual contextIOResultType saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
 Stores receiver state to output stream. More...

virtual contextIOResultType restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
 Restores the receiver state previously written in stream. More...

virtual int checkConsistency ()
 Allows programmer to test some internal data, before computation begins. More...

virtual void printOutputAt (FILE *file, TimeStep *tStep)
 Prints output of receiver to stream, for given time step. More...

virtual InterfacegiveInterface (InterfaceType t)
 Interface requesting service. More...

std::string errorInfo (const char *func) const
 Returns string for prepending output (used by error reporting macros). More...


Protected Member Functions

virtual MaterialStatusCreateMicroplaneStatus (GaussPoint *gp)=0

virtual void initTempStatus (GaussPoint *gp)
 Initializes temporary variables stored in integration point status at the beginning of new time step. More...


Protected Attributes

int numberOfMicroplanes
 Number of microplanes. More...

double microplaneWeights [MAX_NUMBER_OF_MICROPLANES]
 Integration weights of microplanes. More...

double microplaneNormals [MAX_NUMBER_OF_MICROPLANES][3]
 Normals of microplanes. More...

double Kronecker [6]
 Kronecker's delta. More...

double N [MAX_NUMBER_OF_MICROPLANES][6]
 Normal projection tensors for all microplanes. More...

double M [MAX_NUMBER_OF_MICROPLANES][6]
 Shear projection tensors (m direction) for all microplanes. More...

double L [MAX_NUMBER_OF_MICROPLANES][6]
 Shear projection tensors (l direction) for all microplanes. More...

double E
 Young's modulus. More...

double nu
 Poisson's ratio. More...

- Protected Attributes inherited from oofem::StructuralMaterial
double referenceTemperature
 Reference temperature (temperature, when material has been built into structure). More...

- Protected Attributes inherited from oofem::Material
Dictionary propertyDictionary
 Property dictionary. More...

double castingTime
 Casting time. More...

- Protected Attributes inherited from oofem::FEMComponent
int number
 Component number. More...

Domaindomain
 Link to domain object, useful for communicating with other FEM components. More...


Additional Inherited Members

- Static Public Member Functions inherited from oofem::StructuralMaterial
static int giveSymVI (int ind1, int ind2)

static int giveVI (int ind1, int ind2)

static int giveVoigtVectorMask (IntArray &answer, MaterialMode mmode)
 Returns a mask of the vector indicies corresponding to components in a general (non-symmetric) second order tensor of some stress/strain/deformation measure that performes work. More...

static int giveVoigtSymVectorMask (IntArray &answer, MaterialMode mmode)
 The same as giveVoigtVectorMask but returns a mask corresponding to a symmetric second order tensor. More...

static void giveInvertedVoigtVectorMask (IntArray &answer, MaterialMode mmode)
 Gives the inverted version of giveVoigtVectorMask. More...

static int giveSizeOfVoigtVector (MaterialMode mmode)
 Returns the size of reduced stress/strain vector according to given mode. More...

static int giveSizeOfVoigtSymVector (MaterialMode mmode)
 Returns the size of symmetric part of a reduced stress/strain vector according to given mode. More...

static void giveFullVectorForm (FloatArray &answer, const FloatArray &strainVector, MaterialMode matMode)
 Converts the reduced symmetric Voigt vector (2nd order tensor) to full form. More...

static void giveFullVectorFormF (FloatArray &answer, const FloatArray &strainVector, MaterialMode matMode)
 Converts the reduced deformation gradient Voigt vector (2nd order tensor). More...

static void giveFullSymVectorForm (FloatArray &answer, const FloatArray &vec, MaterialMode matMode)
 Converts the reduced unsymmetric Voigt vector (2nd order tensor) to full form. More...

static void giveReducedVectorForm (FloatArray &answer, const FloatArray &vec, MaterialMode matMode)
 Converts the full symmetric Voigt vector (2nd order tensor) to reduced form. More...

static void giveReducedSymVectorForm (FloatArray &answer, const FloatArray &vec, MaterialMode matMode)
 Converts the full unsymmetric Voigt vector (2nd order tensor) to reduced form. More...

static void giveFullSymMatrixForm (FloatMatrix &answer, const FloatMatrix &red, MaterialMode matMode)
 Converts the full unsymmetric Voigt matrix (4th order tensor) to reduced form. More...

static void giveReducedMatrixForm (FloatMatrix &answer, const FloatMatrix &full, MaterialMode matMode)
 Converts the full symmetric Voigt matrix (4th order tensor) to reduced form. More...

static void giveReducedSymMatrixForm (FloatMatrix &answer, const FloatMatrix &full, MaterialMode matMode)
 Converts the full unsymmetric Voigt matrix (4th order tensor) to reduced form. More...

static void transformStrainVectorTo (FloatArray &answer, const FloatMatrix &base, const FloatArray &strainVector, bool transpose=false)
 Transforms 3d strain vector into another coordinate system. More...

static void transformStressVectorTo (FloatArray &answer, const FloatMatrix &base, const FloatArray &stressVector, bool transpose=false)
 Transforms 3d stress vector into another coordinate system. More...

static double computeVonMisesStress (const FloatArray *currentStress)
 Computes equivalent of von Mises stress. More...

static void giveStrainVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
 Computes 3d strain vector transformation matrix from standard vector transformation matrix. More...

static void giveStressVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
 Computes 3d stress vector transformation matrix from standard vector transformation matrix. More...

static void givePlaneStressVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
 Computes 2d stress vector transformation matrix from standard vector transformation matrix. More...

static void sortPrincDirAndValCloseTo (FloatArray *pVal, FloatMatrix *pDir, FloatMatrix *toPDir)
 Method for sorting newly computed principal values (pVal) and corresponding principal directions (pDir) to be closed to some (often previous) principal directions (toPDir). More...

static void computePrincipalValues (FloatArray &answer, const FloatArray &s, stressStrainPrincMode mode)
 Common functions for convenience. More...

static void computePrincipalValDir (FloatArray &answer, FloatMatrix &dir, const FloatArray &s, stressStrainPrincMode mode)
 Computes principal values and directions of stress or strain vector. More...

static double computeDeviatoricVolumetricSplit (FloatArray &dev, const FloatArray &s)
 Computes split of receiver into deviatoric and volumetric part. More...

static void computeDeviatoricVolumetricSum (FloatArray &s, const FloatArray &dev, double mean)

static void applyDeviatoricElasticCompliance (FloatArray &strain, const FloatArray &stress, double EModulus, double nu)

static void applyDeviatoricElasticCompliance (FloatArray &strain, const FloatArray &stress, double GModulus)

static void applyDeviatoricElasticStiffness (FloatArray &stress, const FloatArray &strain, double EModulus, double nu)

static void applyDeviatoricElasticStiffness (FloatArray &stress, const FloatArray &strain, double GModulus)

static void applyElasticStiffness (FloatArray &stress, const FloatArray &strain, double EModulus, double nu)

static void applyElasticCompliance (FloatArray &strain, const FloatArray &stress, double EModulus, double nu)

static double computeStressNorm (const FloatArray &stress)

static double computeFirstInvariant (const FloatArray &s)

static double computeSecondStressInvariant (const FloatArray &s)

static double computeThirdStressInvariant (const FloatArray &s)

static double computeFirstCoordinate (const FloatArray &s)

static double computeSecondCoordinate (const FloatArray &s)

static double computeThirdCoordinate (const FloatArray &s)

- Static Public Attributes inherited from oofem::StructuralMaterial
static std::vector< std::vector< int > > vIindex
 Voigt index map. More...

static std::vector< std::vector< int > > svIndex
 Symmetric Voigt index map. More...


Detailed Description

Abstract base class for all microplane models.

This class provides methods for setting up the integration weights and normals for particular microplanes. Also projection tensors are computed in advance (see method initializeData) and stored. Methods for computing macro strain projections onto particular microplanes and for homogenization of stress vector are provided.

Definition at line 62 of file microplanematerial.h.

Constructor & Destructor Documentation

oofem::MicroplaneMaterial::MicroplaneMaterial ( int  n,
Domain d
)
inline

Constructor.

Creates Microplane Material belonging to domain d, with number n.

Parameters
nMaterial number.
dDomain to which newly created material belongs.

Definition at line 105 of file microplanematerial.h.

Member Function Documentation

double oofem::MicroplaneMaterial::computeNormalDeviatoricStrainComponent ( Microplane mplane,
const FloatArray macroStrain
)

Computes the normal deviatoric component of macro strain on given microplane.

Definition at line 222 of file microplanematerial.C.

References computeNormalStrainComponent(), and computeNormalVolumetricStrainComponent().

Referenced by ~MicroplaneMaterial().

double oofem::MicroplaneMaterial::computeNormalStrainComponent ( Microplane mplane,
const FloatArray macroStrain
)
double oofem::MicroplaneMaterial::computeNormalVolumetricStrainComponent ( Microplane mplane,
const FloatArray macroStrain
)

Computes the normal volumetric component of macro strain on given microplane.

Definition at line 215 of file microplanematerial.C.

References oofem::FloatArray::at().

Referenced by computeNormalDeviatoricStrainComponent(), and ~MicroplaneMaterial().

double oofem::MicroplaneMaterial::computeShearLStrainComponent ( Microplane mplane,
const FloatArray macroStrain
)

Computes the shear component (in l direction) of macro strain on given microplane.

Definition at line 244 of file microplanematerial.C.

References oofem::FloatArray::at(), oofem::GaussPoint::giveNumber(), and L.

Referenced by oofem::MDM::computeDamageOnPlane(), and ~MicroplaneMaterial().

double oofem::MicroplaneMaterial::computeShearMStrainComponent ( Microplane mplane,
const FloatArray macroStrain
)

Computes the shear component (in m direction) of macro strain on given microplane.

Definition at line 230 of file microplanematerial.C.

References oofem::FloatArray::at(), oofem::GaussPoint::giveNumber(), and M.

Referenced by oofem::MDM::computeDamageOnPlane(), and ~MicroplaneMaterial().

void oofem::MicroplaneMaterial::computeStrainVectorComponents ( FloatArray answer,
Microplane mplane,
const FloatArray macroStrain
)

Computes the vector of all micro stress components (Ev, En, Em, El) of macro strain vector on given microplane.

Definition at line 258 of file microplanematerial.C.

References oofem::FloatArray::at(), oofem::GaussPoint::giveNumber(), L, M, N, oofem::FloatArray::resize(), and oofem::FloatArray::zero().

Referenced by oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), and ~MicroplaneMaterial().

virtual MaterialStatus* oofem::MicroplaneMaterial::CreateMicroplaneStatus ( GaussPoint gp)
protectedpure virtual
void oofem::MicroplaneMaterial::give3dMaterialStiffnessMatrix ( FloatMatrix answer,
MatResponseMode  mode,
GaussPoint gp,
TimeStep tStep
)
virtual

Computes full 3d material stiffness matrix at given integration point, time, respecting load history in integration point.

Parameters
answerComputed results.
modeMaterial response mode.
gpIntegration point.
tStepTime step (most models are able to respond only when tStep is current time step).

Reimplemented from oofem::StructuralMaterial.

Reimplemented in oofem::MDM, and oofem::M1Material.

Definition at line 281 of file microplanematerial.C.

References oofem::FloatMatrix::at(), E, nu, oofem::FloatMatrix::resize(), and oofem::FloatMatrix::zero().

Referenced by oofem::M1Material::give3dMaterialStiffnessMatrix(), and ~MicroplaneMaterial().

MaterialMode oofem::MicroplaneMaterial::giveCorrespondingSlaveMaterialMode ( MaterialMode  masterMode)
virtual

Returns corresponding material mode for microplane according to macro integration mode.

Definition at line 79 of file microplanematerial.C.

Referenced by giveMicroplane(), and ~MicroplaneMaterial().

void oofem::MicroplaneMaterial::giveInputRecord ( DynamicInputRecord input)
virtual

Setups the input record string of receiver.

Parameters
inputDynamic input record to be filled by receiver.

Reimplemented from oofem::StructuralMaterial.

Reimplemented in oofem::MDM.

Definition at line 314 of file microplanematerial.C.

References _IFT_MicroplaneMaterial_nmp, oofem::StructuralMaterial::giveInputRecord(), numberOfMicroplanes, and oofem::DynamicInputRecord::setField().

Referenced by oofem::MDM::giveInputRecord(), and ~MicroplaneMaterial().

double oofem::MicroplaneMaterial::giveMicroplaneIntegrationWeight ( Microplane mplane)
virtual

Returns microplane integration weight.

Parameters
mplaneMicroplane.
Returns
Integration weight of given microplane.

Definition at line 193 of file microplanematerial.C.

References oofem::GaussPoint::giveNumber(), and microplaneWeights.

Referenced by oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), and ~MicroplaneMaterial().

void oofem::MicroplaneMaterial::giveMicroplaneNormal ( FloatArray answer,
Microplane mplane
)
virtual

Computes normal of given microplane.

Parameters
answerNormal of given microplane.
mplaneMicroplane, which normal will be computed.

Definition at line 182 of file microplanematerial.C.

References oofem::FloatArray::at(), oofem::GaussPoint::giveNumber(), microplaneNormals, and oofem::FloatArray::resize().

Referenced by ~MicroplaneMaterial().

virtual void oofem::MicroplaneMaterial::giveRealMicroplaneStressVector ( FloatArray answer,
Microplane mplane,
const FloatArray strain,
TimeStep tStep
)
pure virtual

Computes real stress vector on given microplane (the meaning of values depends on particular implementation, e.g, can contain volumetric, deviatoric normal stresses and shear stresses on microplane) for given increment of microplane strains.

Parameters
answerComputed result.
mplanePointer to microplane object, for which response is computed.
strainStrain vector.
tStepTime step.

Implemented in oofem::MDM, oofem::M1Material, and oofem::M4Material.

Referenced by oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), and ~MicroplaneMaterial().

void oofem::MicroplaneMaterial::initializeData ( int  numberOfMicroplanes)
virtual

Initializes internal data (integration weights, microplane normals and computes projection tensors).

Parameters
numberOfMicroplanesNumber of required microplanes.

Reimplemented in oofem::MDM.

Definition at line 322 of file microplanematerial.C.

References oofem::FloatArray::at(), oofem::FloatArray::beVectorProductOf(), Kronecker, L, M, microplaneNormals, microplaneWeights, N, numberOfMicroplanes, and OOFEM_ERROR.

Referenced by oofem::MDM::initializeData(), initializeFrom(), and ~MicroplaneMaterial().

IRResultType oofem::MicroplaneMaterial::initializeFrom ( InputRecord ir)
virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.

See also
IR_GIVE_FIELD
IR_GIVE_OPTIONAL_FIELD
Parameters
irInput record to initialize from.
Returns
IRResultType

Reimplemented from oofem::StructuralMaterial.

Reimplemented in oofem::MDM, oofem::M4Material, and oofem::M1Material.

Definition at line 296 of file microplanematerial.C.

References _IFT_MicroplaneMaterial_e, _IFT_MicroplaneMaterial_n, _IFT_MicroplaneMaterial_nmp, E, initializeData(), oofem::StructuralMaterial::initializeFrom(), IR_GIVE_FIELD, oofem::IRRT_OK, nu, and numberOfMicroplanes.

Referenced by oofem::M1Material::initializeFrom(), oofem::M4Material::initializeFrom(), oofem::MDM::initializeFrom(), and ~MicroplaneMaterial().

void oofem::MicroplaneMaterial::initTempStatus ( GaussPoint gp)
protectedvirtual

Initializes temporary variables stored in integration point status at the beginning of new time step.

Temporary history variables (they describe state of material during solution of time step) are initialized according to history variables, which describe state corresponding to previous equilibrium solution. Default implementation simply extracts status from integration point and calls its initTempStatus method.

Reimplemented from oofem::Material.

Definition at line 106 of file microplanematerial.C.

References giveMicroplane(), giveMicroplaneStatus(), oofem::Material::giveStatus(), oofem::MaterialStatus::initTempStatus(), and numberOfMicroplanes.

Referenced by oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), oofem::M1Material::giveRealStressVector_3d(), and ~MicroplaneMaterial().

contextIOResultType oofem::MicroplaneMaterial::restoreIPContext ( DataStream stream,
ContextMode  mode,
GaussPoint gp
)
virtual

Reads integration point state to output stream.

Parameters
streamOutput stream.
modeDetermines amount of info required in stream (state, definition, ...).
gpintegration point.
Returns
contextIOResultType.
Exceptions
throwsan ContextIOERR exception if error encountered.

Reimplemented from oofem::Material.

Definition at line 150 of file microplanematerial.C.

References oofem::CIO_BADOBJ, oofem::CIO_OK, giveMicroplane(), giveMicroplaneStatus(), numberOfMicroplanes, oofem::FEMComponent::restoreContext(), oofem::Material::restoreIPContext(), and THROW_CIOERR.

Referenced by ~MicroplaneMaterial().

contextIOResultType oofem::MicroplaneMaterial::saveIPContext ( DataStream stream,
ContextMode  mode,
GaussPoint gp
)
virtual

Stores integration point state to output stream.

Parameters
streamOutput stream.
modeDetermines amount of info required in stream (state, definition, ...).
gpintegration point.
Returns
contextIOResultType.
Exceptions
throwsan ContextIOERR exception if error encountered.

Reimplemented from oofem::Material.

Definition at line 122 of file microplanematerial.C.

References oofem::CIO_BADOBJ, oofem::CIO_OK, giveMicroplane(), giveMicroplaneStatus(), numberOfMicroplanes, oofem::FEMComponent::saveContext(), oofem::Material::saveIPContext(), and THROW_CIOERR.

Referenced by ~MicroplaneMaterial().

Member Data Documentation

double oofem::MicroplaneMaterial::Kronecker[6]
protected

Kronecker's delta.

Definition at line 74 of file microplanematerial.h.

Referenced by oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), and initializeData().

double oofem::MicroplaneMaterial::L[MAX_NUMBER_OF_MICROPLANES][6]
protected

Shear projection tensors (l direction) for all microplanes.

Due to symmetry, compressed form is stored.

Definition at line 90 of file microplanematerial.h.

Referenced by computeShearLStrainComponent(), computeStrainVectorComponents(), oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), initializeData(), and oofem::MDM::initializeData().

double oofem::MicroplaneMaterial::M[MAX_NUMBER_OF_MICROPLANES][6]
protected

Shear projection tensors (m direction) for all microplanes.

Due to symmetry, compressed form is stored.

Definition at line 85 of file microplanematerial.h.

Referenced by computeShearMStrainComponent(), computeStrainVectorComponents(), oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), initializeData(), and oofem::MDM::initializeData().

double oofem::MicroplaneMaterial::microplaneNormals[MAX_NUMBER_OF_MICROPLANES][3]
protected

Normals of microplanes.

Definition at line 71 of file microplanematerial.h.

Referenced by giveMicroplaneNormal(), initializeData(), and oofem::MDM::initializeData().


The documentation for this class was generated from the following files:

This page is part of the OOFEM documentation. Copyright (c) 2011 Borek Patzak
Project e-mail: info@oofem.org
Generated at Wed Aug 31 2016 19:10:50 for OOFEM by doxygen 1.8.11 written by Dimitri van Heesch, © 1997-2011
