Rankine nonlocal material. More...

#include <rankinematnl.h>

Inheritance diagram for oofem::RankineMatNl:

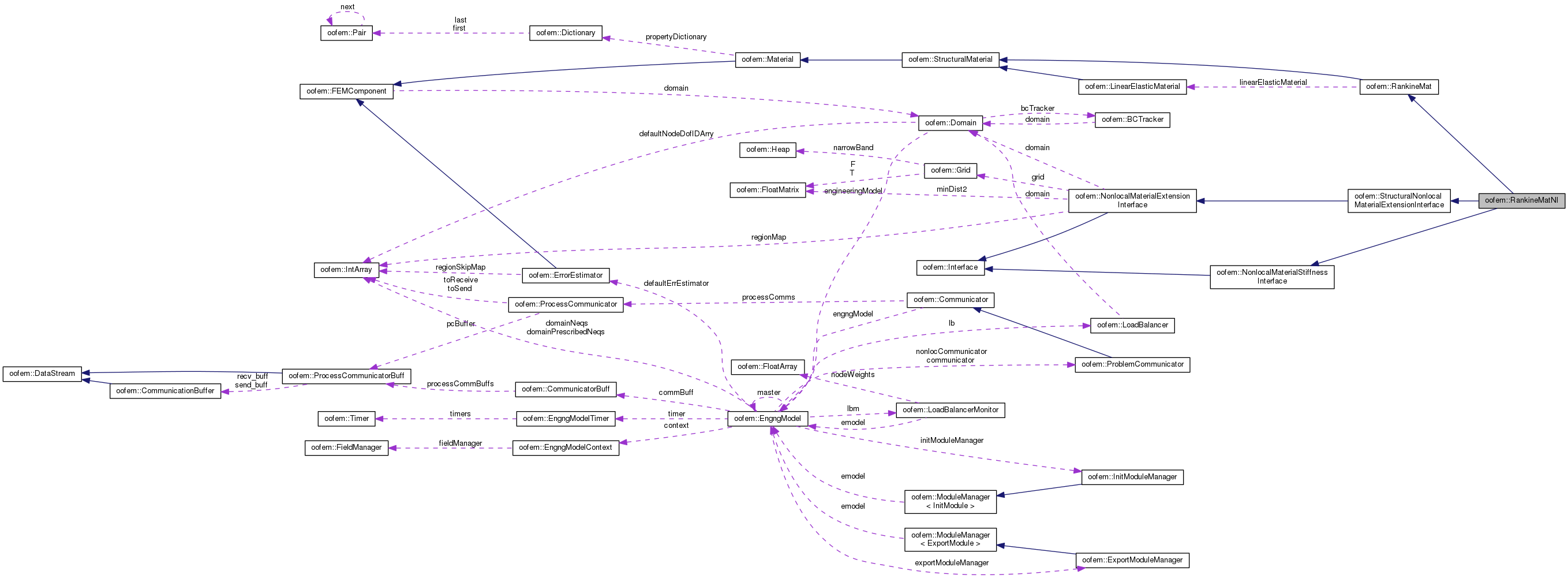

Collaboration diagram for oofem::RankineMatNl:

Public Member Functions
	RankineMatNl (int n, Domain *d)

virtual	~RankineMatNl ()

virtual const char *	giveClassName () const

virtual const char *	giveInputRecordName () const

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual Interface *	giveInterface (InterfaceType)
	Interface requesting service. More...

virtual void	computeCumPlasticStrain (double &kappa, GaussPoint gp, TimeStep tStep)
	Computes the nonlocal cumulated plastic strain from its local form. More...

double	computeDamage (GaussPoint gp, TimeStep tStep)

void	modifyNonlocalWeightFunctionAround (GaussPoint *gp)

double	computeDistanceModifier (double damage)

void	computeLocalCumPlasticStrain (double &kappa, GaussPoint gp, TimeStep tStep)

virtual void	givePlaneStressStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing plane stress stiffness matrix of receiver. More...

virtual void	NonlocalMaterialStiffnessInterface_addIPContribution (SparseMtrx &dest, const UnknownNumberingScheme &s, GaussPoint gp, TimeStep tStep)
	Computes and adds IP contributions to destination matrix. More...

virtual std::vector< localIntegrationRecord > *	NonlocalMaterialStiffnessInterface_giveIntegrationDomainList (GaussPoint *gp)
	Returns integration list of receiver. More...

int	giveLocalNonlocalStiffnessContribution (GaussPoint gp, IntArray &loc, const UnknownNumberingScheme &s, FloatArray &lcontrib, TimeStep tStep)
	Computes the "local" part of nonlocal stiffness contribution assembled for given integration point. More...

void	giveRemoteNonlocalStiffnessContribution (GaussPoint gp, IntArray &rloc, const UnknownNumberingScheme &s, FloatArray &rcontrib, TimeStep tStep)
	Computes the "remote" part of nonlocal stiffness contribution assembled for given integration point. More...

virtual void	giveRealStressVector_PlaneStress (FloatArray &answer, GaussPoint gp, const FloatArray &strainVector, TimeStep tStep)
	Default implementation relies on giveRealStressVector_StressControl. More...

virtual void	giveRealStressVector_1d (FloatArray &answer, GaussPoint gp, const FloatArray &strainVector, TimeStep tStep)
	Default implementation relies on giveRealStressVector_StressControl. More...

virtual void	updateBeforeNonlocAverage (const FloatArray &strainVector, GaussPoint gp, TimeStep tStep)
	Declares the service updating local variables in given integration points, which take part in nonlocal average process. More...

virtual int	hasBoundedSupport ()
	Determines, whether receiver has bounded weighting function (limited support). More...

virtual int	giveIPValue (FloatArray &answer, GaussPoint gp, InternalStateType type, TimeStep tStep)
	Returns the integration point corresponding value in Reduced form. More...

virtual int	packUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Pack all necessary data of integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	unpackAndUpdateUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Unpack and updates all necessary data of given integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	estimatePackSize (DataStream &buff, GaussPoint *ip)
	Estimates the necessary pack size to hold all packed data of receiver. More...

Public Member Functions inherited from oofem::RankineMat
	RankineMat (int n, Domain *d)

virtual	~RankineMat ()

double	evalYieldFunction (const FloatArray &sigPrinc, const double kappa)

double	evalYieldStress (const double kappa)

double	evalPlasticModulus (const double kappa)

void	performPlasticityReturn (GaussPoint *gp, const FloatArray &totalStrain)

double	computeDamage (GaussPoint gp, TimeStep tStep)

double	computeDamageParam (double tempKappa)

double	computeDamageParamPrime (double tempKappa)

virtual void	computeCumPlastStrain (double &kappa, GaussPoint gp, TimeStep tStep)

virtual int	hasMaterialModeCapability (MaterialMode mode)
	Tests if material supports material mode. More...

virtual int	hasNonLinearBehaviour ()
	Returns nonzero if receiver is non linear. More...

LinearElasticMaterial *	giveLinearElasticMaterial ()
	Returns a reference to the basic elastic material. More...

virtual bool	isCharacteristicMtrxSymmetric (MatResponseMode rMode)
	Returns true if stiffness matrix of receiver is symmetric Default implementation returns true. More...

Public Member Functions inherited from oofem::StructuralMaterial
	StructuralMaterial (int n, Domain *d)
	Constructor. More...

virtual	~StructuralMaterial ()
	Destructor. More...

virtual void	giveStiffnessMatrix (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)
	Computes the stiffness matrix for giveRealStressVector of receiver in given integration point, respecting its history. More...

virtual void	giveRealStressVector (FloatArray &answer, GaussPoint gp, const FloatArray &reducedStrain, TimeStep tStep)
	Computes the real stress vector for given total strain and integration point. More...

virtual void	giveRealStressVector_3d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation relies on giveRealStressVector for second Piola-Kirchoff stress. More...

virtual void	giveRealStressVector_PlaneStrain (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation relies on giveRealStressVector_3d. More...

virtual void	giveRealStressVector_StressControl (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, const IntArray &strainControl, TimeStep tStep)
	Iteratively calls giveRealStressVector_3d to find the stress controlled equal to zero· More...

virtual void	giveRealStressVector_ShellStressControl (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, const IntArray &strainControl, TimeStep tStep)

virtual void	giveRealStressVector_Warping (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation relies on giveRealStressVector_StressControl. More...

virtual void	giveRealStressVector_2dBeamLayer (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation relies on giveRealStressVector_StressControl. More...

virtual void	giveRealStressVector_PlateLayer (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation relies on giveRealStressVector_StressControl. More...

virtual void	giveRealStressVector_Fiber (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation relies on giveRealStressVector_StressControl. More...

virtual void	giveRealStressVector_Lattice2d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)

virtual void	giveRealStressVector_Lattice3d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)

virtual void	giveRealStressVector_2dPlateSubSoil (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)
	Default implementation is not provided. More...

virtual void	giveRealStressVector_3dBeamSubSoil (FloatArray &answer, GaussPoint gp, const FloatArray &reducedE, TimeStep tStep)

virtual void	giveEshelbyStressVector_PlaneStrain (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)
	Prototype for computation of Eshelby stress. More...

void	give_dPdF_from (const FloatMatrix &dSdE, FloatMatrix &answer, GaussPoint *gp)

void	convert_dSdE_2_dPdF (FloatMatrix &answer, const FloatMatrix &dSdE, const FloatArray &S, const FloatArray &F, MaterialMode matMode)

virtual void	giveThermalDilatationVector (FloatArray &answer, GaussPoint gp, TimeStep tStep)
	Returns a vector of coefficients of thermal dilatation in direction of each material principal (local) axis. More...

double	giveReferenceTemperature ()
	Returns the reference temperature of receiver. More...

virtual void	computeStressIndependentStrainVector (FloatArray &answer, GaussPoint gp, TimeStep tStep, ValueModeType mode)
	Computes reduced strain vector in given integration point, generated by internal processes in material, which are independent on loading in particular integration point. More...

virtual void	computeStressIndependentStrainVector_3d (FloatArray &answer, GaussPoint gp, TimeStep tStep, ValueModeType mode)

virtual void	give3dMaterialStiffnessMatrix (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)
	Computes full 3d material stiffness matrix at given integration point, time, respecting load history in integration point. More...

virtual void	give3dMaterialStiffnessMatrix_dPdF (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)

virtual void	give3dMaterialStiffnessMatrix_dCde (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)

void	giveStressDependentPartOfStrainVector (FloatArray &answer, GaussPoint gp, const FloatArray &reducedStrainVector, TimeStep tStep, ValueModeType mode)
	Method for subtracting from reduced space strain vector its stress-independent parts (caused by temperature, shrinkage, creep and possibly by other phenomena). More...

void	giveStressDependentPartOfStrainVector_3d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedStrainVector, TimeStep tStep, ValueModeType mode)

virtual int	setIPValue (const FloatArray &value, GaussPoint *gp, InternalStateType type)
	Sets the value of a certain variable at a given integration point to the given value. More...

virtual void	give2dBeamLayerStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing 2d beam layer stiffness matrix of receiver. More...

virtual void	givePlateLayerStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing 2d plate layer stiffness matrix of receiver. More...

virtual void	giveFiberStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing 1d fiber stiffness matrix of receiver. More...

virtual void	give2dLatticeStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing 2d lattice stiffness matrix of receiver. More...

virtual void	give3dLatticeStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing 3d lattice stiffness matrix of receiver. More...

virtual void	give2dPlateSubSoilStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing stiffness matrix of plate subsoil model. More...

virtual void	give3dBeamSubSoilStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing stiffness matrix of beam3d subsoil model. More...

virtual void	giveFirstPKStressVector_3d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)
	Default implementation relies on giveRealStressVector for second Piola-Kirchoff stress. More...

virtual void	giveFirstPKStressVector_PlaneStrain (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)
	Default implementation relies on giveFirstPKStressVector_3d. More...

virtual void	giveFirstPKStressVector_PlaneStress (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)
	Default implementation relies on giveFirstPKStressVector_3d. More...

virtual void	giveFirstPKStressVector_1d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)
	Default implementation relies on giveFirstPKStressVector_3d. More...

virtual void	giveCauchyStressVector_3d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)

virtual void	giveCauchyStressVector_PlaneStrain (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)

virtual void	giveCauchyStressVector_PlaneStress (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)

virtual void	giveCauchyStressVector_1d (FloatArray &answer, GaussPoint gp, const FloatArray &reducedF, TimeStep tStep)

virtual void	givePlaneStressStiffMtrx_dPdF (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)

virtual void	givePlaneStressStiffMtrx_dCde (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)

virtual void	givePlaneStrainStiffMtrx (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)
	Method for computing plane strain stiffness matrix of receiver. More...

virtual void	givePlaneStrainStiffMtrx_dPdF (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)

virtual void	givePlaneStrainStiffMtrx_dCde (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)

virtual void	give1dStressStiffMtrx_dPdF (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)

virtual void	give1dStressStiffMtrx_dCde (FloatMatrix &answer, MatResponseMode mmode, GaussPoint gp, TimeStep tStep)

Public Member Functions inherited from oofem::Material
	Material (int n, Domain *d)
	Constructor. More...

virtual	~Material ()
	Destructor. More...

virtual double	give (int aProperty, GaussPoint *gp)
	Returns the value of material property 'aProperty'. More...

virtual bool	hasProperty (int aProperty, GaussPoint *gp)
	Returns true if 'aProperty' exists on material. More...

virtual void	modifyProperty (int aProperty, double value, GaussPoint *gp)
	Modify 'aProperty', which already exists on material. More...

double	giveCastingTime ()

virtual bool	isActivated (TimeStep *tStep)

virtual int	hasCastingTimeSupport ()
	Tests if material supports casting time. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual contextIOResultType	saveIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Stores integration point state to output stream. More...

virtual contextIOResultType	restoreIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Reads integration point state to output stream. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual int	initMaterial (Element *element)
	Optional function to call specific procedures when initializing a material. More...

virtual MaterialStatus *	giveStatus (GaussPoint *gp) const
	Returns material status of receiver in given integration point. More...

virtual double	predictRelativeComputationalCost (GaussPoint *gp)
	Returns the weight representing relative computational cost of receiver The reference material model is linear isotropic material - its weight is set to 1.0 The other material models should compare to this reference model. More...

virtual double	predictRelativeRedistributionCost (GaussPoint *gp)
	Returns the relative redistribution cost of the receiver. More...

virtual void	initTempStatus (GaussPoint *gp)
	Initializes temporary variables stored in integration point status at the beginning of new time step. More...

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Public Member Functions inherited from oofem::StructuralNonlocalMaterialExtensionInterface
	StructuralNonlocalMaterialExtensionInterface (Domain *d)
	Constructor. More...

	~StructuralNonlocalMaterialExtensionInterface ()
	Destructor. More...

Public Member Functions inherited from oofem::NonlocalMaterialExtensionInterface
	NonlocalMaterialExtensionInterface (Domain *d)
	Constructor. More...

virtual	~NonlocalMaterialExtensionInterface ()
	Destructor. More...

void	updateDomainBeforeNonlocAverage (TimeStep *tStep)
	Updates data in all integration points before nonlocal average takes place. More...

void	buildNonlocalPointTable (GaussPoint *gp)
	Builds list of integration points which take part in nonlocal average in given integration point. More...

void	rebuildNonlocalPointTable (GaussPoint gp, IntArray contributingElems)
	Rebuild list of integration points which take part in nonlocal average in given integration point. More...

void	modifyNonlocalWeightFunctionAround (GaussPoint *gp)
	Recompute the nonlocal interaction weights based on the current solution (e.g., on the damage field). More...

void	modifyNonlocalWeightFunction_1D_Around (GaussPoint *gp)

virtual double	giveNonlocalMetricModifierAt (GaussPoint *gp)
	Provide the current value of the variable that affects nonlocal interaction (e.g., of damage) This method is used e.g. More...

double	computeDistanceModifier (double damage)
	Compute the factor that specifies how the interaction length should be modified, based on the current solution (e.g., on the damage field). More...

double	computeModifiedLength (double length, double dam1, double dam2)
	Compute the modified interaction length based on the current solution (e.g., on the damage field). More...

std::vector< localIntegrationRecord > *	giveIPIntegrationList (GaussPoint *gp)
	Returns integration list corresponding to given integration point. More...

virtual double	computeWeightFunction (double distance)
	Evaluates the basic nonlocal weight function for a given distance between interacting points. More...

virtual double	computeWeightFunction (const FloatArray &src, const FloatArray &coord)
	Evaluates the basic nonlocal weight function for two points with given coordinates. More...

double	giveIntegralOfWeightFunction (const int spatial_dimension)
	Provides the integral of the weight function over the contributing volume in 1, 2 or 3D. More...

virtual double	maxValueOfWeightFunction ()
	Determines the maximum value of the nonlocal weight function. More...

int	giveNumberOfRegions ()
	Determines the number of material regions of domain. More...

virtual double	evaluateSupportRadius ()
	Determines the width (radius) of limited support of weighting function. More...

Domain *	giveDomain ()
	Returns reference to domain. More...

IRResultType	initializeFrom (InputRecord *ir)

void	giveInputRecord (DynamicInputRecord &input)
	Stores receiver in an input record. More...

void	endIPNonlocalAverage (GaussPoint *gp)
	Notifies the receiver, that the nonlocal averaging has been finished for given ip. More...

Public Member Functions inherited from oofem::Interface
	Interface ()
	Constructor. More...

virtual	~Interface ()

Public Member Functions inherited from oofem::NonlocalMaterialStiffnessInterface
	NonlocalMaterialStiffnessInterface ()
	Constructor. More...

virtual void	NonlocalMaterialStiffnessInterface_showSparseMtrxStructure (GaussPoint gp, oofegGraphicContext &gc, TimeStep )
	Plots the sparse structure of stiffness contribution. More...

Protected Member Functions
virtual MaterialStatus *	CreateStatus (GaussPoint *gp) const
	Creates new copy of associated status and inserts it into given integration point. More...

Protected Member Functions inherited from oofem::RankineMat
virtual void	give1dStressStiffMtrx (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)
	Method for computing 1d stiffness matrix of receiver. More...

void	evaluatePlaneStressStiffMtrx (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep, double gprime)
	Executive method used by local and gradient version. More...

void	computeEta (FloatArray &answer, RankineMatStatus *status)
	Computes derivatives of final kappa with respect to final strain. More...

Protected Member Functions inherited from oofem::NonlocalMaterialExtensionInterface
void	applyBarrierConstraints (const FloatArray &gpCoords, const FloatArray &jGpCoords, double &weight)

void	manipulateWeight (double &weight, GaussPoint gp, GaussPoint jGp)
	Manipulates weight on integration point in the element. More...

double	giveDistanceBasedInteractionRadius (const FloatArray &gpCoords)
	Provides the distance based interaction radius This function is called when nlvariation is set to 1. More...

int	mapToGridPoint (double x, double x0)

double	mapToGridCoord (double x, double x0)

double	dist2FromGridNode (double x, double y, int j, int i)

Additional Inherited Members
Static Public Member Functions inherited from oofem::StructuralMaterial
static int	giveSymVI (int ind1, int ind2)

static int	giveVI (int ind1, int ind2)

static int	giveVoigtVectorMask (IntArray &answer, MaterialMode mmode)
	Returns a mask of the vector indicies corresponding to components in a general (non-symmetric) second order tensor of some stress/strain/deformation measure that performes work. More...

static int	giveVoigtSymVectorMask (IntArray &answer, MaterialMode mmode)
	The same as giveVoigtVectorMask but returns a mask corresponding to a symmetric second order tensor. More...

static void	giveInvertedVoigtVectorMask (IntArray &answer, MaterialMode mmode)
	Gives the inverted version of giveVoigtVectorMask. More...

static int	giveSizeOfVoigtVector (MaterialMode mmode)
	Returns the size of reduced stress/strain vector according to given mode. More...

static int	giveSizeOfVoigtSymVector (MaterialMode mmode)
	Returns the size of symmetric part of a reduced stress/strain vector according to given mode. More...

static void	giveFullVectorForm (FloatArray &answer, const FloatArray &strainVector, MaterialMode matMode)
	Converts the reduced symmetric Voigt vector (2nd order tensor) to full form. More...

static void	giveFullVectorFormF (FloatArray &answer, const FloatArray &strainVector, MaterialMode matMode)
	Converts the reduced deformation gradient Voigt vector (2nd order tensor). More...

static void	giveFullSymVectorForm (FloatArray &answer, const FloatArray &vec, MaterialMode matMode)
	Converts the reduced unsymmetric Voigt vector (2nd order tensor) to full form. More...

static void	giveReducedVectorForm (FloatArray &answer, const FloatArray &vec, MaterialMode matMode)
	Converts the full symmetric Voigt vector (2nd order tensor) to reduced form. More...

static void	giveReducedSymVectorForm (FloatArray &answer, const FloatArray &vec, MaterialMode matMode)
	Converts the full unsymmetric Voigt vector (2nd order tensor) to reduced form. More...

static void	giveFullSymMatrixForm (FloatMatrix &answer, const FloatMatrix &red, MaterialMode matMode)
	Converts the full unsymmetric Voigt matrix (4th order tensor) to reduced form. More...

static void	giveReducedMatrixForm (FloatMatrix &answer, const FloatMatrix &full, MaterialMode matMode)
	Converts the full symmetric Voigt matrix (4th order tensor) to reduced form. More...

static void	giveReducedSymMatrixForm (FloatMatrix &answer, const FloatMatrix &full, MaterialMode matMode)
	Converts the full unsymmetric Voigt matrix (4th order tensor) to reduced form. More...

static void	transformStrainVectorTo (FloatArray &answer, const FloatMatrix &base, const FloatArray &strainVector, bool transpose=false)
	Transforms 3d strain vector into another coordinate system. More...

static void	transformStressVectorTo (FloatArray &answer, const FloatMatrix &base, const FloatArray &stressVector, bool transpose=false)
	Transforms 3d stress vector into another coordinate system. More...

static double	computeVonMisesStress (const FloatArray *currentStress)
	Computes equivalent of von Mises stress. More...

static void	giveStrainVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
	Computes 3d strain vector transformation matrix from standard vector transformation matrix. More...

static void	give2DStrainVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
	Computes 2d strain vector transformation matrix from standard vector transformation matrix. More...

static void	giveStressVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
	Computes 3d stress vector transformation matrix from standard vector transformation matrix. More...

static void	givePlaneStressVectorTranformationMtrx (FloatMatrix &answer, const FloatMatrix &base, bool transpose=false)
	Computes 2d stress vector transformation matrix from standard vector transformation matrix. More...

static void	sortPrincDirAndValCloseTo (FloatArray pVal, FloatMatrix pDir, FloatMatrix *toPDir)
	Method for sorting newly computed principal values (pVal) and corresponding principal directions (pDir) to be closed to some (often previous) principal directions (toPDir). More...

static void	computePrincipalValues (FloatArray &answer, const FloatArray &s, stressStrainPrincMode mode)
	Common functions for convenience. More...

static void	computePrincipalValDir (FloatArray &answer, FloatMatrix &dir, const FloatArray &s, stressStrainPrincMode mode)
	Computes principal values and directions of stress or strain vector. More...

static double	computeDeviatoricVolumetricSplit (FloatArray &dev, const FloatArray &s)
	Computes split of receiver into deviatoric and volumetric part. More...

static void	computeDeviatoricVolumetricSum (FloatArray &s, const FloatArray &dev, double mean)

static void	applyDeviatoricElasticCompliance (FloatArray &strain, const FloatArray &stress, double EModulus, double nu)

static void	applyDeviatoricElasticCompliance (FloatArray &strain, const FloatArray &stress, double GModulus)

static void	applyDeviatoricElasticStiffness (FloatArray &stress, const FloatArray &strain, double EModulus, double nu)

static void	applyDeviatoricElasticStiffness (FloatArray &stress, const FloatArray &strain, double GModulus)

static void	applyElasticStiffness (FloatArray &stress, const FloatArray &strain, double EModulus, double nu)

static void	applyElasticCompliance (FloatArray &strain, const FloatArray &stress, double EModulus, double nu)

static double	computeStressNorm (const FloatArray &stress)

static double	computeFirstInvariant (const FloatArray &s)

static double	computeSecondStressInvariant (const FloatArray &s)

static double	computeThirdStressInvariant (const FloatArray &s)

static double	computeFirstCoordinate (const FloatArray &s)

static double	computeSecondCoordinate (const FloatArray &s)

static double	computeThirdCoordinate (const FloatArray &s)

Static Public Attributes inherited from oofem::StructuralMaterial
static std::vector< std::vector< int > >	vIindex
	Voigt index map. More...

static std::vector< std::vector< int > >	svIndex
	Symmetric Voigt index map. More...

Protected Types inherited from oofem::NonlocalMaterialExtensionInterface
enum	WeightFunctionType { WFT_Unknown, WFT_Bell, WFT_Gauss, WFT_Green, WFT_Uniform, WFT_UniformOverElement, WFT_Green_21 }
	Type characterizing the nonlocal weight function. More...

enum	ScalingType { ST_Unknown, ST_Standard, ST_Noscaling, ST_Borino }
	Type characterizing the scaling approach. More...

enum	AveragedVarType { AVT_Unknown, AVT_EqStrain, AVT_Compliance, AVT_Damage }
	Type characterizing the averaged (nonlocal) variable. More...

enum	NlVariationType { NLVT_Standard, NLVT_DistanceBasedLinear, NLVT_StressBased, NLVT_DistanceBasedExponential }
	Type characterizing the Nonlocal variation. More...

Protected Attributes inherited from oofem::RankineMat
LinearElasticMaterial *	linearElasticMaterial
	Reference to the basic elastic material. More...

double	E
	Young's modulus. More...

double	nu
	Poisson's ratio. More...

double	H0
	Initial hardening modulus. More...

int	plasthardtype
	Type of plastic hardening (0=linear, 1=exponential) More...

double	delSigY
	Final increment of yield stress (at infinite cumulative plastic strain) More...

double	sig0
	Initial (uniaxial) yield stress. More...

double	yieldtol
	Relative tolerance in yield condition. More...

double	a
	Parameter that controls damage evolution (a=0 turns damage off). More...

double	ep
	Total strain at peak stress sig0–Used only if plasthardtype=2. More...

double	md
	Exponent in hardening law–Used only if plasthardtype=2. More...

int	damlaw
	type of damage law (0=exponential, 1=exponential and damage starts after peak stress sig0) More...

double	param1
	coefficient required when damlaw=1 or 2 More...

double	param2
	coefficient required when damlaw=1 or 2 More...

double	param3
	coefficient required when damlaw=2 More...

double	param4
	coefficient required when damlaw=2 More...

double	param5
	coefficient required when damlaw=2 More...

Protected Attributes inherited from oofem::StructuralMaterial
double	referenceTemperature
	Reference temperature (temperature, when material has been built into structure). More...

Protected Attributes inherited from oofem::Material
Dictionary	propertyDictionary
	Property dictionary. More...

double	castingTime
	Casting time. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Protected Attributes inherited from oofem::NonlocalMaterialExtensionInterface
Domain *	domain

IntArray	regionMap
	Map indicating regions to skip (region - cross section model). More...

bool	permanentNonlocTableFlag
	Flag indicating whether to keep nonlocal interaction tables of integration points cached. More...

WeightFunctionType	weightFun
	Parameter specifying the type of nonlocal weight function. More...

int	gridSize
	Grid on which the eikonal equation will be solved (used by eikonal nonlocal models) More...

Grid *	grid

FloatMatrix *	minDist2
	Auxiliary matrix to store minimum distances of grid points from Gauss points. More...

double	initDiag
	Optional parameters setting details of the fast marching method. More...

int	order

int	centDiff

double	cl
	Characteristic length of the nonlocal model (its interpretation depends on the type of weight function). More...

double	suprad
	Support radius. More...

double	mm
	For "undernonlocal" or "overnonlocal" formulation. More...

ScalingType	scaling
	Parameter specifying the type of scaling of nonlocal weight function. More...

AveragedVarType	averagedVar
	Parameter specifying the type of averaged (nonlocal) variable. More...

double	cl0
	Initial(user defined) characteristic length of the nonlocal model (its interpretation depends on the weight function) Is different to cl when a Stress-based or a Distance-based nonlocal variation is applied. More...

NlVariationType	nlvar
	Parameter specifying the type of nonlocal variation. More...

double	beta
	Parameter which multiplied with the interaction radius cl0 gives its minimum allowed value. More...

double	zeta
	Parameter used when Distance-based nonlocal variation is applied When it is multiplied with the interaction radius cl gives the maxinmum distance of the Gauss Point from the boundary. More...

double	px
	Parameter specifying the periodic shift in x-direction. More...

double	Rf
	Final value of interaction radius, for a model with evolving characteristic length. More...

double	exponent
	Parameter used as an exponent by models with evolving characteristic length. More...

int	averType
	Parameter specifying how the weight function should be adjusted due to damage. More...

Detailed Description

Rankine nonlocal material.

Definition at line 90 of file rankinematnl.h.

Constructor & Destructor Documentation

oofem::RankineMatNl::RankineMatNl	(	int	n,
		Domain *	d
	)

Definition at line 50 of file rankinematnl.C.

virtual oofem::RankineMatNl::~RankineMatNl ( )

inlinevirtual

Definition at line 95 of file rankinematnl.h.

Member Function Documentation

void oofem::RankineMatNl::computeCumPlasticStrain	(	double &	kappa,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Computes the nonlocal cumulated plastic strain from its local form.

Parameters

kappa	return param, containing the corresponding cumulated plastic strain.
gp	integration point.
tStep	time step.

Definition at line 160 of file rankinematnl.C.

Referenced by computeDamage(), giveIPValue(), giveLocalNonlocalStiffnessContribution(), and givePlaneStressStiffMtrx().

double oofem::RankineMatNl::computeDamage	(	GaussPoint *	gp,
		TimeStep *	tStep
	)

Definition at line 232 of file rankinematnl.C.

References computeCumPlasticStrain(), oofem::RankineMat::computeDamageParam(), oofem::RankineMatStatus::giveDamage(), and oofem::Material::giveStatus().

Referenced by giveRealStressVector_1d(), and giveRealStressVector_PlaneStress().

double oofem::RankineMatNl::computeDistanceModifier ( double damage )

void oofem::RankineMatNl::computeLocalCumPlasticStrain	(	double &	kappa,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

inline

Definition at line 117 of file rankinematnl.h.

References oofem::RankineMat::computeCumPlastStrain(), and oofem::StructuralMaterialStatus::strainVector.

Referenced by updateBeforeNonlocAverage().

virtual MaterialStatus* oofem::RankineMatNl::CreateStatus ( GaussPoint * gp ) const

inlineprotectedvirtual

Creates new copy of associated status and inserts it into given integration point.

Parameters

gp	Integration point where newly created status will be stored.

Returns: Reference to new status.

Reimplemented from oofem::RankineMat.

Definition at line 183 of file rankinematnl.h.

References oofem::FEMComponent::domain, and oofem::RankineMatNlStatus::RankineMatNlStatus().

int oofem::RankineMatNl::estimatePackSize	(	DataStream &	buff,
		GaussPoint *	ip
	)

virtual

Estimates the necessary pack size to hold all packed data of receiver.

Reimplemented from oofem::Material.

Definition at line 513 of file rankinematnl.C.

References oofem::DataStream::givePackSizeOfDouble().

virtual const char* oofem::RankineMatNl::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Reimplemented from oofem::RankineMat.

Definition at line 99 of file rankinematnl.h.

void oofem::RankineMatNl::giveInputRecord ( DynamicInputRecord & input )

virtual

Setups the input record string of receiver.

Parameters

input Dynamic input record to be filled by receiver.

Reimplemented from oofem::StructuralMaterial.

Definition at line 223 of file rankinematnl.C.

References oofem::StructuralMaterial::giveInputRecord(), and oofem::NonlocalMaterialExtensionInterface::giveInputRecord().

virtual const char* oofem::RankineMatNl::giveInputRecordName ( ) const

inlinevirtual

Returns: Input record name of the receiver.

Reimplemented from oofem::RankineMat.

Definition at line 100 of file rankinematnl.h.

References _IFT_RankineMatNl_Name, oofem::RankineMatStatus::damage, oofem::FEMComponent::giveInputRecord(), oofem::RankineMatNlStatus::giveInterface(), oofem::IntegrationPointStatus::gp, oofem::MaterialStatus::initializeFrom(), and oofem::RankineMatStatus::kappa.

Interface * oofem::RankineMatNl::giveInterface ( InterfaceType t )

virtual

Interface requesting service.

See also: InterfaceType

Returns: Requested interface if implemented, otherwise NULL.

Reimplemented from oofem::FEMComponent.

Definition at line 198 of file rankinematnl.C.

References oofem::NonlocalMaterialExtensionInterfaceType, and oofem::NonlocalMaterialStiffnessInterfaceType.

int oofem::RankineMatNl::giveIPValue	(	FloatArray &	answer,
		GaussPoint *	gp,
		InternalStateType	type,
		TimeStep *	tStep
	)

virtual

Returns the integration point corresponding value in Reduced form.

Parameters

answer	Contain corresponding ip value, zero sized if not available.
gp	Integration point to which the value refers.
type	Determines the type of internal variable.
tStep	Determines the time step.

Returns: Nonzero if the assignment can be done, zero if this type of variable is not supported.

Todo:: Fix this value!

Reimplemented from oofem::RankineMat.

Definition at line 373 of file rankinematnl.C.

References oofem::FloatArray::at(), computeCumPlasticStrain(), oofem::RankineMat::giveIPValue(), oofem::RankineMatNlStatus::giveKappa_nl(), oofem::Material::giveStatus(), and oofem::FloatArray::resize().

int oofem::RankineMatNl::giveLocalNonlocalStiffnessContribution	(	GaussPoint *	gp,
		IntArray &	loc,
		const UnknownNumberingScheme &	s,
		FloatArray &	lcontrib,
		TimeStep *	tStep
	)

Computes the "local" part of nonlocal stiffness contribution assembled for given integration point.

Parameters

gp	Source integration point.
loc	Local code numbers.
lcontrib	"Local" contribution.
s	Numbering scheme that determines assembly.
tStep	Time step.

Returns: Nonzero if local point contributes (loading) or zero if not (unloading in elastic range, elastic).

Definition at line 299 of file rankinematnl.C.

References oofem::FloatArray::at(), oofem::FloatMatrix::at(), oofem::StructuralElement::computeBmatrixAt(), computeCumPlasticStrain(), oofem::RankineMat::computeDamageParamPrime(), oofem::RankineMatStatus::giveDamage(), oofem::GaussPoint::giveElement(), oofem::Element::giveLocationArray(), oofem::FloatMatrix::giveNumberOfColumns(), oofem::FloatArray::giveSize(), oofem::Material::giveStatus(), oofem::RankineMatStatus::giveTempDamage(), oofem::RankineMatStatus::giveTempEffectiveStress(), oofem::NonlocalMaterialExtensionInterface::mm, and oofem::FloatArray::resize().

Referenced by NonlocalMaterialStiffnessInterface_addIPContribution().

void oofem::RankineMatNl::givePlaneStressStiffMtrx	(	FloatMatrix &	answer,
		MatResponseMode	mmode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Method for computing plane stress stiffness matrix of receiver.

Default implementation computes 3d stiffness matrix using give3dMaterialStiffnessMatrix and reduces it to plane stress stiffness using reduce method described above. However, this reduction is quite time consuming and if it is possible, it is recommended to overload this method and provide direct method for computing particular stiffness matrix.

Parameters

answer	Stiffness matrix.
mmode	Material response mode.
gp	Integration point, which load history is used.
tStep	Time step (most models are able to respond only when tStep is current time step).

Reimplemented from oofem::RankineMat.

Definition at line 102 of file rankinematnl.C.

References computeCumPlasticStrain(), oofem::RankineMat::computeDamageParamPrime(), oofem::RankineMat::evaluatePlaneStressStiffMtrx(), oofem::RankineMatStatus::giveDamage(), oofem::RankineMat::giveLinearElasticMaterial(), oofem::Material::giveStatus(), oofem::StructuralMaterial::giveStiffnessMatrix(), oofem::RankineMatStatus::giveTempDamage(), oofem::NonlocalMaterialExtensionInterface::mm, OOFEM_ERROR, and oofem::FloatMatrix::times().

void oofem::RankineMatNl::giveRealStressVector_1d	(	FloatArray &	answer,
		GaussPoint *	gp,
		const FloatArray &	reducedE,
		TimeStep *	tStep
	)

virtual

Default implementation relies on giveRealStressVector_StressControl.

Reimplemented from oofem::RankineMat.

Definition at line 79 of file rankinematnl.C.

References oofem::FloatArray::beScaled(), computeDamage(), oofem::RankineMatStatus::computeWork_1d(), oofem::RankineMat::E, oofem::Material::giveStatus(), oofem::RankineMatStatus::giveTempEffectiveStress(), oofem::StructuralMaterialStatus::letTempStrainVectorBe(), oofem::StructuralMaterialStatus::letTempStressVectorBe(), oofem::RankineMatStatus::setTempDamage(), and oofem::RankineMat::sig0.

void oofem::RankineMatNl::giveRealStressVector_PlaneStress	(	FloatArray &	answer,
		GaussPoint *	gp,
		const FloatArray &	reducedE,
		TimeStep *	tStep
	)

virtual

Default implementation relies on giveRealStressVector_StressControl.

Reimplemented from oofem::RankineMat.

Definition at line 57 of file rankinematnl.C.

References oofem::FloatArray::beScaled(), computeDamage(), oofem::RankineMatStatus::computeWork_PlaneStress(), oofem::RankineMat::E, oofem::Material::giveStatus(), oofem::RankineMatStatus::giveTempEffectiveStress(), oofem::StructuralMaterialStatus::letTempStrainVectorBe(), oofem::StructuralMaterialStatus::letTempStressVectorBe(), oofem::RankineMatStatus::setTempDamage(), and oofem::RankineMat::sig0.

void oofem::RankineMatNl::giveRemoteNonlocalStiffnessContribution	(	GaussPoint *	gp,
		IntArray &	rloc,
		const UnknownNumberingScheme &	s,
		FloatArray &	rcontrib,
		TimeStep *	tStep
	)

Computes the "remote" part of nonlocal stiffness contribution assembled for given integration point.

Parameters

gp	Remote integration point.
rloc	Remote element code numbers.
rcontrib	"Remote" contribution.
s	Numbering scheme that determines assembly.
tStep	Time step.

Definition at line 339 of file rankinematnl.C.

References oofem::FloatArray::at(), oofem::FloatMatrix::at(), oofem::StructuralElement::computeBmatrixAt(), oofem::RankineMat::computeEta(), oofem::RankineMatStatus::giveCumulativePlasticStrain(), oofem::GaussPoint::giveElement(), oofem::Element::giveLocationArray(), oofem::FloatMatrix::giveNumberOfColumns(), oofem::Material::giveStatus(), oofem::RankineMatStatus::giveTempCumulativePlasticStrain(), oofem::FloatArray::resize(), and oofem::FloatArray::zero().

Referenced by NonlocalMaterialStiffnessInterface_addIPContribution().

virtual int oofem::RankineMatNl::hasBoundedSupport ( )

inlinevirtual

Determines, whether receiver has bounded weighting function (limited support).

Returns: True if weighting function bounded, zero otherwise.

Reimplemented from oofem::NonlocalMaterialExtensionInterface.

Definition at line 174 of file rankinematnl.h.

IRResultType oofem::RankineMatNl::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.

See also: IR_GIVE_FIELD; IR_GIVE_OPTIONAL_FIELD

Parameters

ir	Input record to initialize from.

Returns: IRResultType

Reimplemented from oofem::RankineMat.

Definition at line 211 of file rankinematnl.C.

References oofem::RankineMat::initializeFrom(), oofem::NonlocalMaterialExtensionInterface::initializeFrom(), and oofem::IRRT_OK.

void oofem::RankineMatNl::modifyNonlocalWeightFunctionAround ( GaussPoint * gp )

void oofem::RankineMatNl::NonlocalMaterialStiffnessInterface_addIPContribution	(	SparseMtrx &	dest,
		const UnknownNumberingScheme &	s,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Computes and adds IP contributions to destination matrix.

Implements oofem::NonlocalMaterialStiffnessInterface.

Definition at line 257 of file rankinematnl.C.

References oofem::SparseMtrx::assemble(), oofem::FloatMatrix::clear(), oofem::Element::computeVolumeAround(), oofem::GaussPoint::giveElement(), oofem::NonlocalMaterialStatusExtensionInterface::giveIntegrationDomainList(), oofem::NonlocalMaterialStatusExtensionInterface::giveIntegrationScale(), giveLocalNonlocalStiffnessContribution(), giveRemoteNonlocalStiffnessContribution(), oofem::Material::giveStatus(), and oofem::FloatMatrix::plusDyadUnsym().

std::vector< localIntegrationRecord > * oofem::RankineMatNl::NonlocalMaterialStiffnessInterface_giveIntegrationDomainList ( GaussPoint * gp )

virtual

Returns integration list of receiver.

Contains localIntegrationRecord structures, containing references to integration points and their weights that influence to nonlocal average in receiver's associated integration point.

Implements oofem::NonlocalMaterialStiffnessInterface.

Definition at line 287 of file rankinematnl.C.

References oofem::NonlocalMaterialExtensionInterface::buildNonlocalPointTable(), oofem::NonlocalMaterialStatusExtensionInterface::giveIntegrationDomainList(), and oofem::Material::giveStatus().

int oofem::RankineMatNl::packUnknowns	(	DataStream &	buff,
		TimeStep *	tStep,
		GaussPoint *	ip
	)

virtual

Pack all necessary data of integration point (according to element parallel_mode) into given communication buffer.

The nature of packed data is material model dependent. Typically, for material of "local" response (response depends only on integration point local state) no data are exchanged. For "nonlocal" constitutive models the send/receive of local values which undergo averaging is performed between local and corresponding remote elements.

Parameters

buff	Communication buffer.
tStep	Solution step.
ip	Integration point.

Reimplemented from oofem::Material.

Definition at line 490 of file rankinematnl.C.

References oofem::RankineMatNlStatus::giveLocalCumPlasticStrainForAverage(), and oofem::DataStream::write().

int oofem::RankineMatNl::unpackAndUpdateUnknowns	(	DataStream &	buff,
		TimeStep *	tStep,
		GaussPoint *	ip
	)

virtual

Unpack and updates all necessary data of given integration point (according to element parallel_mode) into given communication buffer.

See also: packUnknowns service.

Parameters

buff	Communication buffer.
tStep	Solution step.
ip	Integration point.

Reimplemented from oofem::Material.

Definition at line 501 of file rankinematnl.C.

References oofem::RankineMatNlStatus::localCumPlasticStrainForAverage, oofem::DataStream::read(), and oofem::RankineMatNlStatus::setLocalCumPlasticStrainForAverage().

void oofem::RankineMatNl::updateBeforeNonlocAverage	(	const FloatArray &	strainVector,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Declares the service updating local variables in given integration points, which take part in nonlocal average process.

Because value of single integration point influences nonlocal variables in several near integration points, it is suitable to compute these variables only once. These should be stored in integration point associated statuses. The implementation is left on derived classes. Provide material local strain increment - as is provided to computeRealStresVector. This allows to update internal vars to be averaged to new state

Parameters

strainVector	Total strain vector in given integration point.
gp	Integration point to update.
tStep	Solution step indicating time of update.

Implements oofem::StructuralNonlocalMaterialExtensionInterface.

Definition at line 139 of file rankinematnl.C.

References computeLocalCumPlasticStrain(), oofem::Material::giveStatus(), oofem::Material::initTempStatus(), oofem::RankineMat::performPlasticityReturn(), and oofem::RankineMatNlStatus::setLocalCumPlasticStrainForAverage().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
