Material interface for gradient material models. More...

#include <graddpmaterialextensioninterface.h>

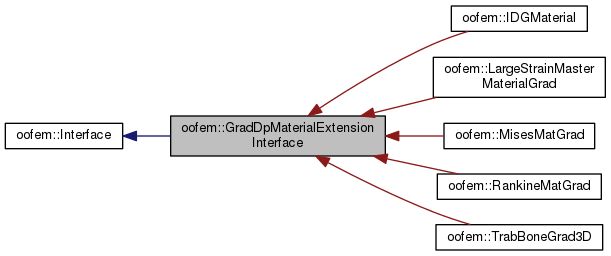

Inheritance diagram for oofem::GradDpMaterialExtensionInterface:

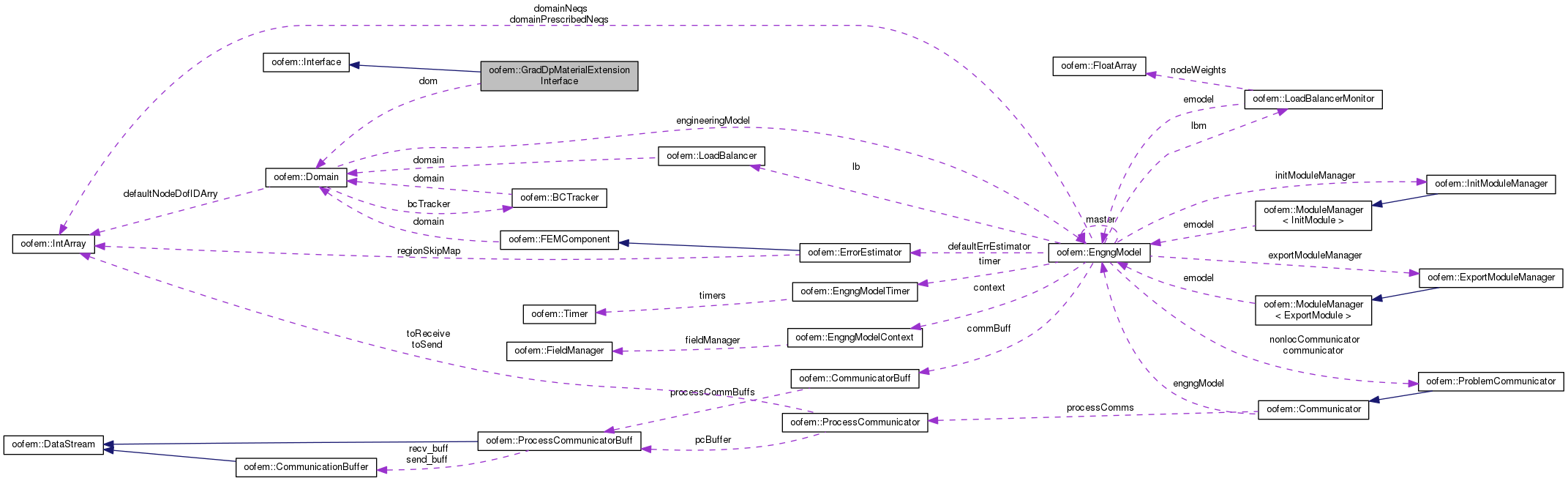

Collaboration diagram for oofem::GradDpMaterialExtensionInterface:

Public Member Functions
	GradDpMaterialExtensionInterface (Domain *d)
	Constructor. More...

virtual	~GradDpMaterialExtensionInterface ()
	Destructor. More...

virtual void	givePDGradMatrix_uu (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)=0
	Left upper block. More...

virtual void	givePDGradMatrix_ku (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)=0
	Left lower block. More...

virtual void	givePDGradMatrix_uk (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)=0
	Right upper block. More...

virtual void	givePDGradMatrix_kk (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)=0
	Right lower block. More...

virtual void	givePDGradMatrix_LD (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)=0
	Stress-based averaging. More...

virtual void	giveRealStressVectorGrad (FloatArray &answer1, double &answer2, GaussPoint gp, const FloatArray &totalStrain, double nonlocalDamageDrivningVariable, TimeStep tStep)
	gradient - based giveRealStressVector More...

virtual void	giveFirstPKStressVectorGrad (FloatArray &answer1, double &answer2, GaussPoint gp, const FloatArray &totalStrain, double nonlocalDamageDrivningVariable, TimeStep tStep)

virtual void	giveCauchyStressVectorGrad (FloatArray &answer1, double &answer2, GaussPoint gp, const FloatArray &totalStrain, double nonlocalDamageDrivningVariable, TimeStep tStep)

virtual IRResultType	initializeFrom (InputRecord *ir)

int	giveAveragingType ()

Public Member Functions inherited from oofem::Interface
	Interface ()
	Constructor. More...

virtual	~Interface ()

virtual const char *	giveClassName () const =0

Protected Member Functions
void	giveDistanceBasedCharacteristicLength (const FloatArray &gpCoords)
	Provides the distance based interaction radius This function is called when averType is set to 1. More...

Protected Attributes
Domain *	dom

double	cl0
	Initial(user defined) characteristic length of the nonlocal model (its interpretation depends on the weight function) Is different to cl when a Stress-based or a Distance-based nonlocal variation is applied. More...

int	averType
	Parameter which defines the averaging type When averType is equal to zereo classical approach is used for averType equal to one, distance-based apprach is used and avetType equal to two corresponds to stress-based averaging. More...

double	beta
	Parameter which multiplied with the interaction radius cl0 gives its minimum allowed value. More...

double	zeta
	Parameter used when Distance-based nonlocal variation is applied When it is multiplied with the interaction radius cl gives the maxinmum distance of the Gauss Point from the boundary. More...

double	cl
	Characteristic length of the nonlocal model (its interpretation depends on the type of weight function). More...

Detailed Description

Material interface for gradient material models.

Definition at line 59 of file graddpmaterialextensioninterface.h.

Constructor & Destructor Documentation

oofem::GradDpMaterialExtensionInterface::GradDpMaterialExtensionInterface ( Domain * d )

Constructor.

Creates material with given number, belonging to given domain.

Parameters

d	Domain to which new material will belong.

Definition at line 51 of file graddpmaterialextensioninterface.C.

References averType, beta, cl, cl0, dom, and zeta.

virtual oofem::GradDpMaterialExtensionInterface::~GradDpMaterialExtensionInterface ( )

inlinevirtual

Destructor.

Definition at line 117 of file graddpmaterialextensioninterface.h.

References givePDGradMatrix_kk(), givePDGradMatrix_ku(), givePDGradMatrix_LD(), givePDGradMatrix_uk(), and givePDGradMatrix_uu().

Member Function Documentation

int oofem::GradDpMaterialExtensionInterface::giveAveragingType ( )

inline

Definition at line 134 of file graddpmaterialextensioninterface.h.

References averType.

Referenced by oofem::GradDpElement::computeStiffnessMatrix_kk(), oofem::GradDpElement::computeStiffnessMatrix_ku(), oofem::GradDpElement::giveInternalForcesVector(), and oofem::GradDpElement::giveLocalInternalForcesVector().

virtual void oofem::GradDpMaterialExtensionInterface::giveCauchyStressVectorGrad	(	FloatArray &	answer1,
		double &	answer2,
		GaussPoint *	gp,
		const FloatArray &	totalStrain,
		double	nonlocalDamageDrivningVariable,
		TimeStep *	tStep
	)

inlinevirtual

Definition at line 131 of file graddpmaterialextensioninterface.h.

References initializeFrom(), and OOFEM_ERROR.

Referenced by oofem::GradDpElement::computeStressVectorAndLocalCumulatedStrain().

void oofem::GradDpMaterialExtensionInterface::giveDistanceBasedCharacteristicLength ( const FloatArray & gpCoords )

protected

Provides the distance based interaction radius This function is called when averType is set to 1.

The function loops over all user defined nonlocal boundaries to find minimum distance from the GP. Then calculates interaction radius

Parameters

gpCoords The Gauss points' coordinates, whose interaction radius is calculated based on the distance-based averaging approach.

Definition at line 100 of file graddpmaterialextensioninterface.C.

References beta, oofem::NonlocalBarrier::calculateMinimumDistanceFromBoundary(), cl, cl0, dom, oofem::Domain::giveNonlocalBarrier(), oofem::Domain::giveNumberOfNonlocalBarriers(), and zeta.

Referenced by oofem::IDGMaterial::giveInternalLength().

virtual void oofem::GradDpMaterialExtensionInterface::giveFirstPKStressVectorGrad	(	FloatArray &	answer1,
		double &	answer2,
		GaussPoint *	gp,
		const FloatArray &	totalStrain,
		double	nonlocalDamageDrivningVariable,
		TimeStep *	tStep
	)

inlinevirtual

Reimplemented in oofem::LargeStrainMasterMaterialGrad.

Definition at line 130 of file graddpmaterialextensioninterface.h.

References OOFEM_ERROR.

Referenced by oofem::GradDpElement::computeStressVectorAndLocalCumulatedStrain().

virtual void oofem::GradDpMaterialExtensionInterface::givePDGradMatrix_kk	(	FloatMatrix &	answer,
		MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

pure virtual

Right lower block.

Implemented in oofem::RankineMatGrad, oofem::MisesMatGrad, oofem::TrabBoneGrad3D, oofem::IDGMaterial, and oofem::LargeStrainMasterMaterialGrad.

Referenced by oofem::GradDpElement::computeStiffnessMatrix_kk(), oofem::GradDpElement::giveInternalForcesVector(), oofem::LargeStrainMasterMaterialGrad::giveInternalLength(), oofem::GradDpElement::giveLocalInternalForcesVector(), and ~GradDpMaterialExtensionInterface().

virtual void oofem::GradDpMaterialExtensionInterface::givePDGradMatrix_ku	(	FloatMatrix &	answer,
		MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

pure virtual

Left lower block.

Implemented in oofem::RankineMatGrad, oofem::MisesMatGrad, oofem::TrabBoneGrad3D, oofem::IDGMaterial, and oofem::LargeStrainMasterMaterialGrad.

Referenced by oofem::GradDpElement::computeStiffnessMatrix_ku(), oofem::LargeStrainMasterMaterialGrad::give3dKappaMatrix(), oofem::GradDpElement::giveInternalForcesVector(), and ~GradDpMaterialExtensionInterface().

virtual void oofem::GradDpMaterialExtensionInterface::givePDGradMatrix_LD	(	FloatMatrix &	answer,
		MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

pure virtual

Stress-based averaging.

Implemented in oofem::RankineMatGrad, oofem::MisesMatGrad, oofem::TrabBoneGrad3D, oofem::IDGMaterial, and oofem::LargeStrainMasterMaterialGrad.

Referenced by oofem::GradDpElement::computeStiffnessMatrix_ku(), oofem::GradDpElement::giveInternalForcesVector(), and ~GradDpMaterialExtensionInterface().

virtual void oofem::GradDpMaterialExtensionInterface::givePDGradMatrix_uk	(	FloatMatrix &	answer,
		MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

pure virtual

Right upper block.

Implemented in oofem::RankineMatGrad, oofem::MisesMatGrad, oofem::TrabBoneGrad3D, oofem::IDGMaterial, and oofem::LargeStrainMasterMaterialGrad.

Referenced by oofem::GradDpElement::computeStiffnessMatrix_uk(), oofem::LargeStrainMasterMaterialGrad::give3dGprime(), oofem::GradDpElement::giveInternalForcesVector(), and ~GradDpMaterialExtensionInterface().

virtual void oofem::GradDpMaterialExtensionInterface::givePDGradMatrix_uu	(	FloatMatrix &	answer,
		MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

pure virtual

Left upper block.

Implemented in oofem::RankineMatGrad, oofem::MisesMatGrad, oofem::TrabBoneGrad3D, oofem::IDGMaterial, and oofem::LargeStrainMasterMaterialGrad.

Referenced by oofem::GradDpElement::computeStiffnessMatrix_ku(), oofem::GradDpElement::computeStiffnessMatrix_uu(), oofem::GradDpElement::giveInternalForcesVector(), and ~GradDpMaterialExtensionInterface().

virtual void oofem::GradDpMaterialExtensionInterface::giveRealStressVectorGrad	(	FloatArray &	answer1,
		double &	answer2,
		GaussPoint *	gp,
		const FloatArray &	totalStrain,
		double	nonlocalDamageDrivningVariable,
		TimeStep *	tStep
	)

inlinevirtual

gradient - based giveRealStressVector

Reimplemented in oofem::RankineMatGrad, oofem::TrabBoneGrad3D, oofem::MisesMatGrad, and oofem::IDGMaterial.

Definition at line 129 of file graddpmaterialextensioninterface.h.

References OOFEM_ERROR.

Referenced by oofem::GradDpElement::computeStressVectorAndLocalCumulatedStrain(), and oofem::LargeStrainMasterMaterialGrad::giveFirstPKStressVectorGrad().

IRResultType oofem::GradDpMaterialExtensionInterface::initializeFrom ( InputRecord * ir )

virtual

Reimplemented in oofem::RankineMatGrad, oofem::TrabBoneGrad3D, oofem::MisesMatGrad, oofem::IDGMaterial, and oofem::LargeStrainMasterMaterialGrad.

Definition at line 66 of file graddpmaterialextensioninterface.C.

References _IFT_GradDpMaterialExtensionInterface_averagingtype, _IFT_GradDpMaterialExtensionInterface_beta, _IFT_GradDpMaterialExtensionInterface_cl, _IFT_GradDpMaterialExtensionInterface_zeta, averType, beta, cl, cl0, IR_GIVE_FIELD, IR_GIVE_OPTIONAL_FIELD, oofem::IRRT_OK, and zeta.

Referenced by giveCauchyStressVectorGrad(), and oofem::IDGMaterial::initializeFrom().

Member Data Documentation

int oofem::GradDpMaterialExtensionInterface::averType

protected

Parameter which defines the averaging type When averType is equal to zereo classical approach is used for averType equal to one, distance-based apprach is used and avetType equal to two corresponds to stress-based averaging.

Definition at line 79 of file graddpmaterialextensioninterface.h.

Referenced by giveAveragingType(), GradDpMaterialExtensionInterface(), and initializeFrom().

double oofem::GradDpMaterialExtensionInterface::beta

protected

Parameter which multiplied with the interaction radius cl0 gives its minimum allowed value.

It is used when a Stress-based or a Distance-based nonlocal variation is applied

Definition at line 86 of file graddpmaterialextensioninterface.h.

Referenced by oofem::TrabBoneGrad3D::give3dKappaMatrix(), oofem::TrabBoneGrad3D::give3dMaterialStiffnessMatrix(), giveDistanceBasedCharacteristicLength(), GradDpMaterialExtensionInterface(), and initializeFrom().

double oofem::GradDpMaterialExtensionInterface::cl

protected

Characteristic length of the nonlocal model (its interpretation depends on the type of weight function).

Definition at line 100 of file graddpmaterialextensioninterface.h.

Referenced by giveDistanceBasedCharacteristicLength(), oofem::IDGMaterial::giveInternalLength(), oofem::IDGMaterial::giveInternalLengthDerivative(), GradDpMaterialExtensionInterface(), and initializeFrom().

double oofem::GradDpMaterialExtensionInterface::cl0

protected

Initial(user defined) characteristic length of the nonlocal model (its interpretation depends on the weight function) Is different to cl when a Stress-based or a Distance-based nonlocal variation is applied.

Definition at line 70 of file graddpmaterialextensioninterface.h.

Referenced by giveDistanceBasedCharacteristicLength(), oofem::IDGMaterial::giveInternalLength(), GradDpMaterialExtensionInterface(), and initializeFrom().

Domain* oofem::GradDpMaterialExtensionInterface::dom

protected

Definition at line 62 of file graddpmaterialextensioninterface.h.

Referenced by giveDistanceBasedCharacteristicLength(), and GradDpMaterialExtensionInterface().

double oofem::GradDpMaterialExtensionInterface::zeta

protected

Parameter used when Distance-based nonlocal variation is applied When it is multiplied with the interaction radius cl gives the maxinmum distance of the Gauss Point from the boundary.

If the Gauss Point's distance from the boundary is larger than this value the interaction radius cl is set to cl0

Definition at line 94 of file graddpmaterialextensioninterface.h.

Referenced by giveDistanceBasedCharacteristicLength(), GradDpMaterialExtensionInterface(), and initializeFrom().

The documentation for this class was generated from the following files:
