Abstract class representing field of primary variables (those, which are unknown and are typically associated to nodes). More...

#include <primaryfield.h>

Inheritance diagram for oofem::PrimaryField:

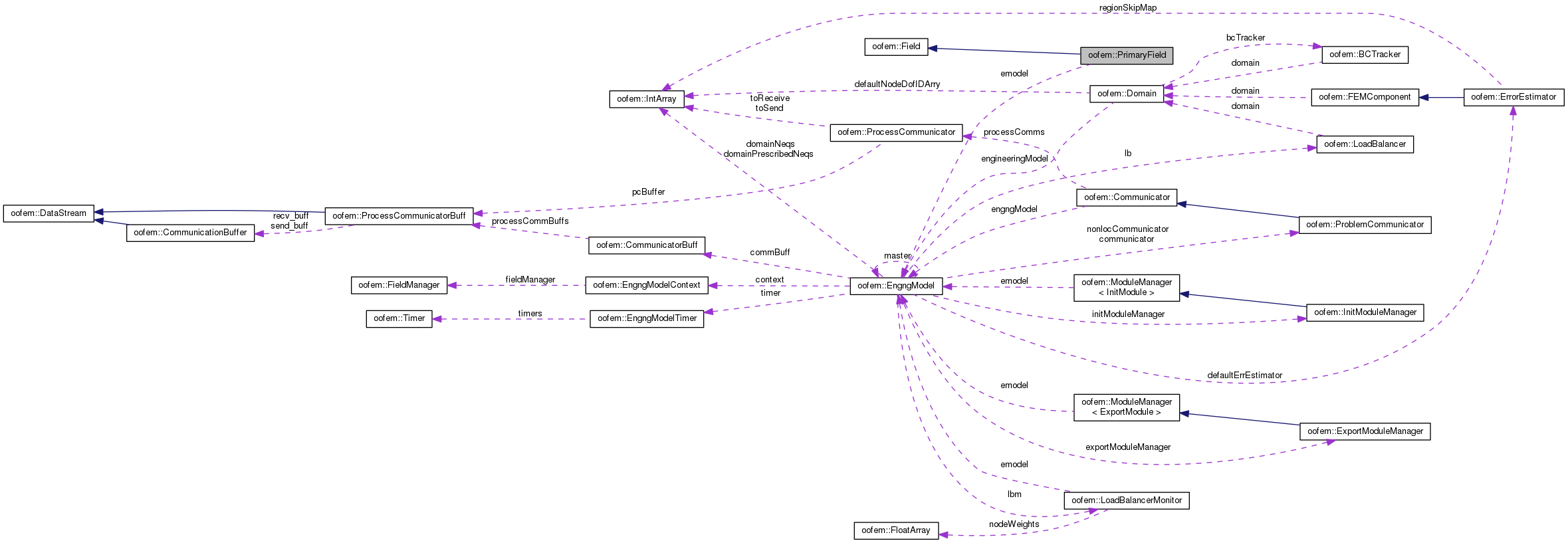

Collaboration diagram for oofem::PrimaryField:

Public Member Functions
	PrimaryField (EngngModel *a, int idomain, FieldType ft, int nHist)
	Constructor. More...

virtual	~PrimaryField ()

virtual void	initialize (ValueModeType mode, TimeStep *tStep, FloatArray &answer, const UnknownNumberingScheme &s)
	Copy unknowns from previous solution or DOF's dictionary to the solution vector. More...

void	storeDofManager (TimeStep *tStep, DofManager &dman)

void	storeInDofDictionaries (TimeStep *tStep)

void	readDofManager (TimeStep *tStep, DofManager &dman)

void	readFromDofDictionaries (TimeStep *tStep)

virtual void	applyDefaultInitialCondition ()
	Applies the default initial values values for all DOFs (0) in given domain. More...

void	applyInitialCondition (InitialCondition &ic)
	Applies initial condition to all DOFs. More...

virtual void	applyBoundaryCondition (TimeStep *tStep)
	Applies all boundary conditions to all prescribed DOFs. More...

void	applyBoundaryCondition (BoundaryCondition &bc, TimeStep *tStep)
	Applies the boundary condition to all prescribed DOFs in given domain. More...

virtual double	giveUnknownValue (Dof dof, ValueModeType mode, TimeStep tStep)

virtual int	evaluateAt (FloatArray &answer, const FloatArray &coords, ValueModeType mode, TimeStep *tStep)
	Evaluates the field at given point. More...

virtual int	evaluateAt (FloatArray &answer, DofManager dman, ValueModeType mode, TimeStep tStep)
	Evaluates the field at given DofManager. More...

virtual int	__evaluateAt (FloatArray &answer, DofManager dman, ValueModeType mode, TimeStep tStep, IntArray *dofId)
	Evaluates the field at given DOF manager, allows to select specific dofs using mask. More...

virtual int	__evaluateAt (FloatArray &answer, const FloatArray &coords, ValueModeType mode, TimeStep tStep, IntArray dofId)
	Evaluates the field at given point, allows to select specific dofs using mask. More...

virtual FloatArray *	giveSolutionVector (TimeStep *tStep)

virtual void	update (ValueModeType mode, TimeStep *tStep, const FloatArray &vectorToStore, const UnknownNumberingScheme &s)
	Project vectorToStore back to DOF's dictionary. More...

virtual void	advanceSolution (TimeStep *tStep)
	Brings up a new solution vector for given time step. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode)
	Restores the receiver state previously written in stream. More...

virtual const char *	giveClassName () const

int	giveActualStepNumber ()

Public Member Functions inherited from oofem::Field
	Field (FieldType b)
	Constructor. More...

virtual	~Field ()

FieldType	giveType ()
	Returns the type of receiver. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Protected Member Functions
int	resolveIndx (TimeStep *tStep, int shift)

FloatArray *	giveSolutionVector (int)

FloatArray *	givePrescribedVector (int)

Protected Attributes
int	actualStepNumber

int	actualStepIndx

int	nHistVectors

std::vector< FloatArray >	solutionVectors

std::vector< FloatArray >	prescribedVectors

std::vector< TimeStep >	solStepList

EngngModel *	emodel

int	domainIndx

Protected Attributes inherited from oofem::Field
FieldType	type

Detailed Description

Abstract class representing field of primary variables (those, which are unknown and are typically associated to nodes).

In the current design the primary field is understood as simple database, that allows to keep track of the history of a solution vector representing primary field. The history is kept as sequence of solution vectors. The history depth kept can be selected. PrimaryField class basically provides access to time-dependent vectors of the field of unknowns. It adds the possibility to further interpolate the field values using element interpolation functions. The prescribed values of the field are not maintained, since they can be obtained directly from corresponding DOFs of associated domain.

As the PrimaryField stores the state directly in solution vectors that are usually directly updated by EngngModel, it may contain a mix of different fields (this is especially true for strongly coupled problems). Then masked primary field can be used to select only certain DOFs (based on DofID) from its master PrimaryField.

Note: This primary field will always assume default numbering schemes.

Definition at line 104 of file primaryfield.h.

Constructor & Destructor Documentation

oofem::PrimaryField::PrimaryField	(	EngngModel *	a,
		int	idomain,
		FieldType	ft,
		int	nHist
	)

Constructor.

Creates a field of given type associated to given domain. Not using pointer to domain, because this will prevent the use of PrimaryField as an EngngModel attribute. This is because the domain does not exists when PrimaryField is created (this is when EngngModel is created).

Parameters

a	Engineering model which field belongs to.
idomain	Index of domain for field.
ft	Type of stored field.
nHist	Number of old time steps to store.

Definition at line 49 of file primaryfield.C.

References actualStepIndx, actualStepNumber, domainIndx, emodel, and nHistVectors.

oofem::PrimaryField::~PrimaryField ( )

virtual

Definition at line 60 of file primaryfield.C.

Member Function Documentation

int oofem::PrimaryField::__evaluateAt	(	FloatArray &	answer,
		DofManager *	dman,
		ValueModeType	mode,
		TimeStep *	tStep,
		IntArray *	dofId
	)

virtual

Evaluates the field at given DOF manager, allows to select specific dofs using mask.

Parameters

answer	Evaluated field at dman.
dman	DOF manager of interest.
mode	Mode of evaluated unknowns.
tStep	Time step of interest.
dofId	Dof mask, id set to NULL, all Dofs evaluated.

Returns: Error code (0=ok, 1=point not found in domain).

Definition at line 349 of file primaryfield.C.

References domainIndx, emodel, oofem::DofManager::giveCompleteUnknownVector(), oofem::DofManager::giveCoordinates(), oofem::FEMComponent::giveDomain(), oofem::EngngModel::giveDomain(), and oofem::DofManager::giveUnknownVector().

Referenced by oofem::MaskedPrimaryField::evaluateAt(), and evaluateAt().

int oofem::PrimaryField::__evaluateAt	(	FloatArray &	answer,
		const FloatArray &	coords,
		ValueModeType	mode,
		TimeStep *	tStep,
		IntArray *	dofId
	)

virtual

Evaluates the field at given point, allows to select specific dofs using mask.

Parameters

answer	Evaluated field at coords.
coords	Coordinates of the point of interest.
mode	Mode of evaluated unknowns.
tStep	Time step of interest.
dofId	Dof mask, id set to NULL, all Dofs evaluated.

Returns: Error code (0=ok, 1=point not found in domain)

Definition at line 369 of file primaryfield.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), oofem::Element::computeField(), domainIndx, oofem::EIPrimaryFieldInterface::EIPrimaryFieldI_evaluateFieldVectorAt(), oofem::EIPrimaryFieldInterfaceType, emodel, oofem::IntArray::findFirstIndexOf(), oofem::EngngModel::giveDomain(), oofem::SpatialLocalizer::giveElementClosestToPoint(), oofem::SpatialLocalizer::giveElementContainingPoint(), oofem::Element::giveElementDofIDMask(), oofem::FEMComponent::giveInterface(), oofem::IntArray::giveSize(), oofem::Domain::giveSpatialLocalizer(), OOFEM_ERROR, oofem::FloatArray::resize(), and oofem::FloatArray::zero().

void oofem::PrimaryField::advanceSolution ( TimeStep * tStep )

virtual

Brings up a new solution vector for given time step.

Parameters

tStep Time step for new solution vector.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 483 of file primaryfield.C.

References actualStepIndx, actualStepNumber, oofem::TimeStep::giveNumber(), givePrescribedVector(), giveSolutionVector(), nHistVectors, OOFEM_ERROR, resolveIndx(), and solStepList.

Referenced by oofem::DofDistributedPrimaryField::advanceSolution(), oofem::CBS::applyIC(), and oofem::CBS::solveYourselfAt().

void oofem::PrimaryField::applyBoundaryCondition ( TimeStep * tStep )

virtual

Applies all boundary conditions to all prescribed DOFs.

Parameters

tStep Current time step.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 262 of file primaryfield.C.

References oofem::FloatArray::at(), domainIndx, emodel, oofem::Domain::giveBc(), oofem::Domain::giveBcs(), oofem::Domain::giveDofManagers(), oofem::EngngModel::giveDomain(), givePrescribedVector(), oofem::TimeStep::giveTargetTime(), and resolveIndx().

void oofem::PrimaryField::applyBoundaryCondition	(	BoundaryCondition &	bc,
		TimeStep *	tStep
	)

Applies the boundary condition to all prescribed DOFs in given domain.

Parameters

bc	Boundary condition.
domain	tStep Time step for when bc applies.

Definition at line 286 of file primaryfield.C.

References oofem::FloatArray::at(), oofem::BoundaryCondition::give(), oofem::GeneralBoundaryCondition::giveDofIDs(), oofem::Domain::giveDofManager(), oofem::DofManager::giveDofWithID(), oofem::FEMComponent::giveDomain(), oofem::Dof::giveEqn(), givePrescribedVector(), oofem::Domain::giveSet(), oofem::GeneralBoundaryCondition::giveSetNumber(), oofem::TimeStep::giveTargetTime(), and resolveIndx().

void oofem::PrimaryField::applyDefaultInitialCondition ( )

virtual

Applies the default initial values values for all DOFs (0) in given domain.

Parameters

domain Domain number

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 168 of file primaryfield.C.

References applyInitialCondition(), oofem::FloatArray::at(), domainIndx, emodel, oofem::InitialCondition::give(), oofem::Domain::giveDofManagers(), oofem::EngngModel::giveDomain(), oofem::Domain::giveIc(), oofem::Domain::giveIcs(), oofem::EngngModel::giveNumberOfDomainEquations(), givePrescribedVector(), oofem::EngngModel::giveSolutionStepWhenIcApply(), giveSolutionVector(), oofem::InitialCondition::hasConditionOn(), prescribedVectors, resolveIndx(), and solutionVectors.

void oofem::PrimaryField::applyInitialCondition ( InitialCondition & ic )

Applies initial condition to all DOFs.

Parameters

ic	Initial condition for DOFs

Definition at line 217 of file primaryfield.C.

References oofem::FloatArray::at(), emodel, oofem::InitialCondition::give(), oofem::Domain::giveDofManager(), oofem::FEMComponent::giveDomain(), givePrescribedVector(), oofem::Domain::giveSet(), oofem::InitialCondition::giveSetNumber(), oofem::EngngModel::giveSolutionStepWhenIcApply(), giveSolutionVector(), oofem::TimeStep::giveTimeIncrement(), oofem::InitialCondition::hasConditionOn(), and resolveIndx().

Referenced by applyDefaultInitialCondition().

int oofem::PrimaryField::evaluateAt	(	FloatArray &	answer,
		const FloatArray &	coords,
		ValueModeType	mode,
		TimeStep *	tStep
	)

virtual

Evaluates the field at given point.

Parameters

answer	Evaluated field at point.
coords	Coordinates of the point of interest.
mode	Mode of evaluated unknowns.
tStep	Time step of interest.

Returns: Error code (0-ok, 1-point not found in domain).

Implements oofem::Field.

Definition at line 427 of file primaryfield.C.

References __evaluateAt().

int oofem::PrimaryField::evaluateAt	(	FloatArray &	answer,
		DofManager *	dman,
		ValueModeType	mode,
		TimeStep *	tStep
	)

virtual

Evaluates the field at given DofManager.

Parameters

answer	Evaluated field at dman.
dman	DOF manager to evaluate at.
mode	Mode of evaluated unknowns.
tStep	Time step of interest.

Returns: Error code (0-ok, 1-point not found in domain).

Implements oofem::Field.

Definition at line 435 of file primaryfield.C.

References __evaluateAt().

int oofem::PrimaryField::giveActualStepNumber ( )

inline

Definition at line 243 of file primaryfield.h.

virtual const char* oofem::PrimaryField::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Implements oofem::Field.

Definition at line 240 of file primaryfield.h.

FloatArray * oofem::PrimaryField::givePrescribedVector ( int i )

protected

Definition at line 458 of file primaryfield.C.

References nHistVectors, OOFEM_ERROR, and prescribedVectors.

Referenced by advanceSolution(), applyBoundaryCondition(), applyDefaultInitialCondition(), applyInitialCondition(), giveUnknownValue(), readDofManager(), and storeDofManager().

FloatArray * oofem::PrimaryField::giveSolutionVector ( TimeStep * tStep )

virtual

Parameters

tStep Time step to take solution for.

Returns: Solution vector for requested time step.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 443 of file primaryfield.C.

References resolveIndx().

Referenced by advanceSolution(), applyDefaultInitialCondition(), oofem::CBS::applyIC(), applyInitialCondition(), oofem::DofDistributedPrimaryField::giveSolutionVector(), giveUnknownValue(), initialize(), readDofManager(), oofem::CBS::solveYourselfAt(), storeDofManager(), and update().

FloatArray * oofem::PrimaryField::giveSolutionVector ( int i )

protected

Definition at line 449 of file primaryfield.C.

References nHistVectors, OOFEM_ERROR, and solutionVectors.

double oofem::PrimaryField::giveUnknownValue	(	Dof *	dof,
		ValueModeType	mode,
		TimeStep *	tStep
	)

virtual

Parameters

dof	Pointer to DOF.
mode	What the unknown describes (increment, total value etc.).
tStep	Time step of interest.

Returns: Value of interest at given DOF.

Todo:: Clean this up, this is a hack for when we ask for the increment in the first step.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 319 of file primaryfield.C.

References oofem::FloatArray::at(), oofem::Dof::giveEqn(), givePrescribedVector(), giveSolutionVector(), OOFEM_ERROR, oofem::FloatArray::resize(), and resolveIndx().

Referenced by oofem::MasterDof::giveUnknown(), and oofem::CBS::giveUnknownComponent().

void oofem::PrimaryField::initialize	(	ValueModeType	mode,
		TimeStep *	tStep,
		FloatArray &	answer,
		const UnknownNumberingScheme &	s
	)

virtual

Copy unknowns from previous solution or DOF's dictionary to the solution vector.

Parameters

mode	what the unknown describes (increment, total value etc.).
tStep	Time of interest.
answer	Resulting vector.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 154 of file primaryfield.C.

References oofem::__ValueModeTypeToString(), giveSolutionVector(), OOFEM_ERROR, resolveIndx(), and oofem::FloatArray::subtract().

void oofem::PrimaryField::readDofManager	(	TimeStep *	tStep,
		DofManager &	dman
	)

Definition at line 108 of file primaryfield.C.

References oofem::FloatArray::at(), givePrescribedVector(), oofem::TimeStep::givePreviousStep(), giveSolutionVector(), nHistVectors, and resolveIndx().

Referenced by readFromDofDictionaries().

void oofem::PrimaryField::readFromDofDictionaries ( TimeStep * tStep )

Definition at line 128 of file primaryfield.C.

References domainIndx, emodel, oofem::Domain::giveBcs(), oofem::Domain::giveDofManagers(), oofem::EngngModel::giveDomain(), oofem::Domain::giveElements(), and readDofManager().

int oofem::PrimaryField::resolveIndx	(	TimeStep *	tStep,
		int	shift
	)

protected

Definition at line 468 of file primaryfield.C.

References actualStepIndx, actualStepNumber, oofem::TimeStep::giveNumber(), nHistVectors, and OOFEM_ERROR.

Referenced by advanceSolution(), applyBoundaryCondition(), applyDefaultInitialCondition(), applyInitialCondition(), giveSolutionVector(), giveUnknownValue(), initialize(), readDofManager(), and storeDofManager().

contextIOResultType oofem::PrimaryField::restoreContext	(	DataStream &	stream,
		ContextMode	mode
	)

virtual

Restores the receiver state previously written in stream.

Reads the FEMComponent class-id in order to allow test consistency.

Parameters

stream	Input stream.
mode	Determines amount of info in stream (state, definition,...).

Returns: contextIOResultType.

Exceptions

Throws an ContextIOERR exception if error encountered.

Implements oofem::Field.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 541 of file primaryfield.C.

References actualStepIndx, actualStepNumber, oofem::CIO_IOERR, oofem::CIO_OK, emodel, nHistVectors, prescribedVectors, oofem::DataStream::read(), solStepList, solutionVectors, and THROW_CIOERR.

Referenced by oofem::CBS::restoreContext().

contextIOResultType oofem::PrimaryField::saveContext	(	DataStream &	stream,
		ContextMode	mode
	)

virtual

Stores receiver state to output stream.

Writes the FEMComponent class-id in order to allow test whether correct data are then restored.

Parameters

stream	Output stream.
mode	Determines amount of info in stream (state, definition,...).

Returns: contextIOResultType.

Exceptions

Throws an ContextIOERR exception if error encountered.

Implements oofem::Field.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 507 of file primaryfield.C.

References actualStepIndx, actualStepNumber, oofem::CIO_IOERR, oofem::CIO_OK, prescribedVectors, solStepList, solutionVectors, THROW_CIOERR, and oofem::DataStream::write().

Referenced by oofem::CBS::saveContext().

void oofem::PrimaryField::storeDofManager	(	TimeStep *	tStep,
		DofManager &	dman
	)

Definition at line 65 of file primaryfield.C.

References oofem::FloatArray::at(), givePrescribedVector(), oofem::TimeStep::givePreviousStep(), giveSolutionVector(), nHistVectors, and resolveIndx().

Referenced by storeInDofDictionaries().

void oofem::PrimaryField::storeInDofDictionaries ( TimeStep * tStep )

Definition at line 84 of file primaryfield.C.

References domainIndx, emodel, oofem::Domain::giveBcs(), oofem::Domain::giveDofManagers(), oofem::EngngModel::giveDomain(), oofem::Domain::giveElements(), and storeDofManager().

void oofem::PrimaryField::update	(	ValueModeType	mode,
		TimeStep *	tStep,
		const FloatArray &	vectorToStore,
		const UnknownNumberingScheme &	s
	)

virtual

Project vectorToStore back to DOF's dictionary.

Parameters

vectorToStore	Vector with the size of number of equations.
mode	Mode of the unknown (increment, total value etc.)
tStep	Time step unknowns belong to.

Reimplemented in oofem::DofDistributedPrimaryField.

Definition at line 309 of file primaryfield.C.

References oofem::__ValueModeTypeToString(), giveSolutionVector(), and OOFEM_ERROR.

Member Data Documentation

int oofem::PrimaryField::actualStepIndx

protected

Definition at line 108 of file primaryfield.h.

Referenced by advanceSolution(), PrimaryField(), resolveIndx(), restoreContext(), and saveContext().

int oofem::PrimaryField::actualStepNumber

protected

Definition at line 107 of file primaryfield.h.

Referenced by advanceSolution(), PrimaryField(), resolveIndx(), restoreContext(), and saveContext().

int oofem::PrimaryField::domainIndx

protected

Definition at line 114 of file primaryfield.h.

Referenced by __evaluateAt(), oofem::DofDistributedPrimaryField::applyBoundaryCondition(), applyBoundaryCondition(), oofem::DofDistributedPrimaryField::applyDefaultInitialCondition(), applyDefaultInitialCondition(), oofem::DofDistributedPrimaryField::initialize(), PrimaryField(), readFromDofDictionaries(), storeInDofDictionaries(), and oofem::DofDistributedPrimaryField::update().

EngngModel* oofem::PrimaryField::emodel

protected

Definition at line 113 of file primaryfield.h.

Referenced by __evaluateAt(), oofem::DofDistributedPrimaryField::advanceSolution(), oofem::DofDistributedPrimaryField::applyBoundaryCondition(), applyBoundaryCondition(), oofem::DofDistributedPrimaryField::applyDefaultInitialCondition(), applyDefaultInitialCondition(), oofem::DofDistributedPrimaryField::applyInitialCondition(), applyInitialCondition(), oofem::DofDistributedPrimaryField::initialize(), PrimaryField(), readFromDofDictionaries(), restoreContext(), storeInDofDictionaries(), and oofem::DofDistributedPrimaryField::update().

int oofem::PrimaryField::nHistVectors

protected

Definition at line 109 of file primaryfield.h.

Referenced by advanceSolution(), givePrescribedVector(), giveSolutionVector(), PrimaryField(), readDofManager(), resolveIndx(), restoreContext(), and storeDofManager().

std :: vector< FloatArray > oofem::PrimaryField::prescribedVectors

protected

Definition at line 111 of file primaryfield.h.

Referenced by applyDefaultInitialCondition(), givePrescribedVector(), restoreContext(), and saveContext().

std :: vector< TimeStep > oofem::PrimaryField::solStepList

protected

Definition at line 112 of file primaryfield.h.

Referenced by advanceSolution(), restoreContext(), and saveContext().

std :: vector< FloatArray > oofem::PrimaryField::solutionVectors

protected

Definition at line 110 of file primaryfield.h.

Referenced by applyDefaultInitialCondition(), giveSolutionVector(), restoreContext(), and saveContext().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
